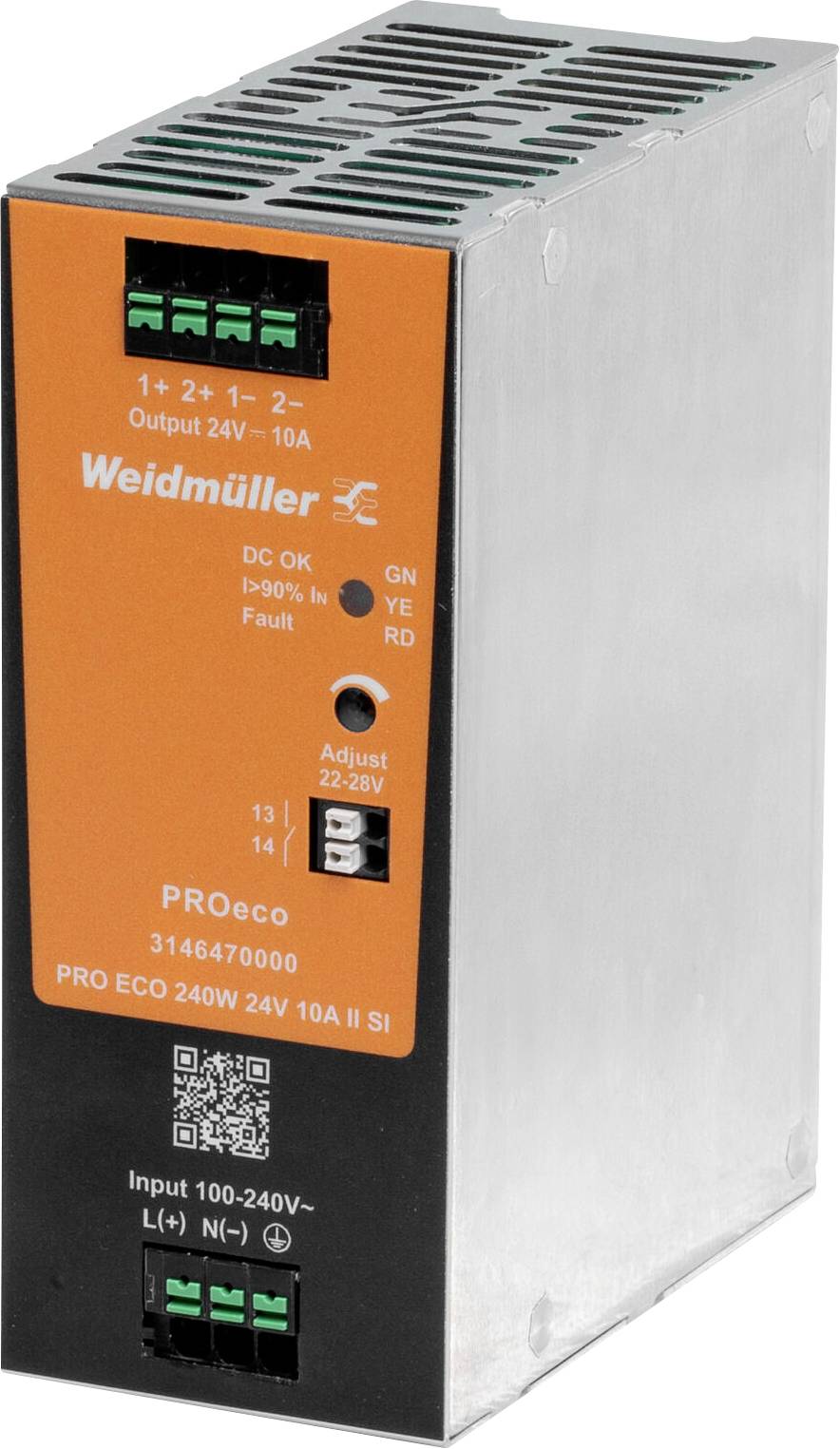

Weidmüller 3146470000 SMPSU 24 V 10 A 240 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
SMPSU
- Input voltage
85-264 V/AC;
110-370 V DC
- Max. output current
10 A
- Output current (max.) - rounded
10 A
240 W
- Output type (power supply units)
Adjustable
- Output voltage (nominal)
24 V
- Dim
(L x W x H) 100 x 52 x 130 mm
- Weight
695 g
- Output voltage (max.)
28 V
- Output voltage (min.)
22 V
- Operating temperature (max.)
70 °C
- Manufacturer part #
3146470000
- Content
1 pc(s)
- PSU features
Surge protection
- Width
52 mm
- Height
130 mm
- Length
100 mm
IP20
- Max. temperature
70 °C
- Min. temperature
-25 °C
- Type
PRO ECO 240W 24V 10A II SI
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3642320 Weidmüller 3146470000 SMPSU 24 V 10 A 240 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3642320 Weidmüller 3146470000 SMPSU 24 V 10 A 240 W Content 1 pc(s)
Description
Power supply device for providing DC voltage.
