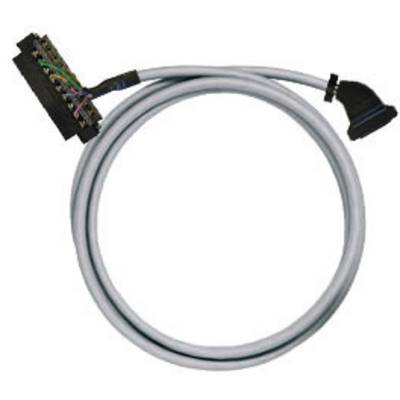

Grey cable with connectors at both ends, suitable for electronic connections or device interfaces.

Image similar

Grey cable with connectors at both ends, suitable for electronic connections or device interfaces.

Image similar

Weidmüller

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Net weight: 386 g
storage temperature, max.: 60 °C
storage temperature, min.: -10 °C
connection SPS: Rockwell COMPACT LOGIX 1769-RTBN 18P
connection interface: Flat CABLE CONTTOR HE10 20P
number of poles, min.: 20 poles
external diameter: 8.6 ± 1 mm
cable: LiYY cable
material: PVC
conductor cross-section: 0.25 mm²
permissible current per path, max.: 1 A
total current, max. 3 A
resistance: ≤ 80 mΩ/m
High voltage test: 1 KV/1s

Product type: PLC cable

Operating voltage: 60, 25 V DC, V AC (max)

Max. operating voltage: 60 V DC
25 V AC

Length: 3 m

Manufacturer part #: 7789015030

Type: PAC-CMLX-HE20-V0-3M

Max. ambient temperature: +50 °C

Min. ambient temperature: -10 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1916583 Weidmüller 7789015030 PAC-CMLX-HE20-V0-3M PLC cable

User & Safety Instructions

User & Safety Instructions 1916583 Weidmüller 7789015030 PAC-CMLX-HE20-V0-3M PLC cable
