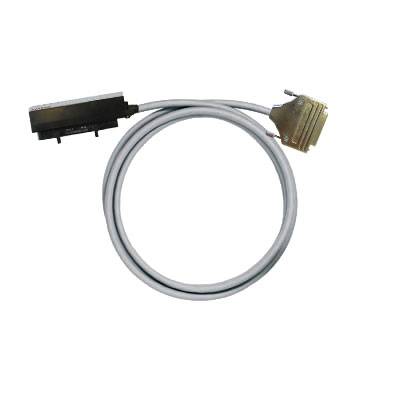

Weidmüller 7789035015 PAC-CTLX-SD25-V0-1M5 PLC cable
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Pre-fabricated data cable
- PAC CTLX-SD25-V 0-1 M5
Technical specifications
- Storage temperature, max.: 60 °C
- Storage temperature, min.: -10 °C
- Connection interface: SUB-D FEMALE 25P
- Connection SPS: ROCKWELL CONTROL LOGIX 1756-TBCH 36P
- Outer diameter: 10.15 ± 1 mm
- Cable: LiYCY Wire
- cross-section: 0.25 mm²
- Nominal voltage: ≤ 60 Vdc ≤ 25 Vac
- Permissible current per path, max.: 1 A
- Total current, max.: 3 A
- Resistance: ≤ 80 mΩ/m
- high voltage test: 1 KV/1s
- Product type
PLC cable
- Manufacturer part #
7789035015
- Type
PAC-CTLX-SD25-V0-1M5
- Type
Cable length: 1.5 m
- Cable length
1.50 m
- Material
PVC
- Number of pins
25
- Max. temperature
+50 °C
- Min. temperature
-10 °C
- Weight
450 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 256548 Weidmüller 7789035015 PAC-CTLX-SD25-V0-1M5 PLC cable
User & Safety Instructions
User & Safety Instructions 256548 Weidmüller 7789035015 PAC-CTLX-SD25-V0-1M5 PLC cable
Description
Pre-fabricated data cable. Pre-fabricated cable, PAC, cable LiYCY, 0.25 mm². The pre-assembled PAC-cable, the electrical and logical connection to the PLC with the PLC interface. This cable consists of the following elements: PLC connection of the manufacturer. Multi-pin LIYY or LY YCY (shielded) cable with 0.14 mm² or 0.25 mm² cross-section. SubD or RSV connector for connection to the interface. The cables are automatically checked the continuity and insulation to guarantee their special functionality for which they have been developed.
This text is machine translated.
