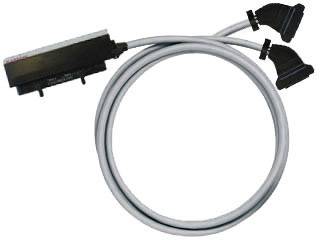

Grey double cable with two black adapters at the ends, suitable for data transfer between older and modern devices.

Image similar

Grey double cable with two black adapters at the ends, suitable for data transfer between older and modern devices.

Image similar

Weidmüller

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Net weight: 1,069 g
Storage temperature, max.: 60 °C
Storage temperature, min.: -10 °C
Connection SPS: Rockwell CONTROL LOGIX 1756-TBCH 36P
Connection Interface: Flat CABLE CONTTOR HE10 20P
Number of poles, min.: 20 Pole
Outer diameter: 8.6 ± 1 mm
Cable: LiYY Material
: PVC
conductor cross-section: 0.25 mm²
Permissible current per path, max.: 1 A
total current, max. 3 A
resistance: ≤ 80 mΩ/m
High voltage test: 1 KV/1s

Product type: PLC cable

Operating voltage: 60, 25 V DC, V AC (max)

Max. operating voltage: 60 V DC
25 V AC

Length: 3.5 m

Manufacturer part #: 7789042035

Type: PAC-CTLX-HE20-V3-3M5

Max. ambient temperature: +50 °C

Min. ambient temperature: -10 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1914954 Weidmüller 7789042035 PAC-CTLX-HE20-V3-3M5 PLC cable

User & Safety Instructions

User & Safety Instructions 1914954 Weidmüller 7789042035 PAC-CTLX-HE20-V3-3M5 PLC cable
