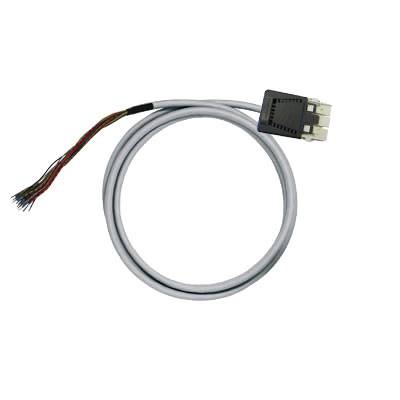

Weidmüller 7789106100 PAC-UNIV-RV36-F-10M PLC cable
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Transfer module
- PAC UNIV-RV36-F-10M
Technical specifications
- Storage temperature, max.: 60 °C
- Storage temperature, min.: -10 °C
- Connection interface: WEIDUELLER RSV 36P connector
- Connection SPS: H0.25/10 (FERRULES 0,25mm²)
- Outer diameter: 11.2 ± 1 mm
- Cable: LiYY
- Wire cross-section: 0.25 mm²
- Nominal voltage: ≤ 250 Vdc ≤ 250 Vac
- Permissible current per path, max.: 1 A
- Total current, max.: 3 A
- Resistance: ≤ 80 mΩ/m
- high voltage test: 1 KV/1s
- Product type
PLC cable
- Manufacturer part #
7789106100
- Type
PAC-UNIV-RV36-F-10M
- Cable length
10.00 m
- Material
PVC
- Number of pins
36
- Max. temperature
+50 °C
- Min. temperature
-10 °C
- Weight
2052 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 256744 Weidmüller 7789106100 PAC-UNIV-RV36-F-10M PLC cable
User & Safety Instructions
User & Safety Instructions 256744 Weidmüller 7789106100 PAC-UNIV-RV36-F-10M PLC cable
Description
Transfer module. Pre-fabricated cable, PAC, cable LiYY, 0.25 mm². The pre-assembled PAC-cable, the electrical and logical connection to the PLC with the PLC interface. This cable consists of the following elements: PLC connection of the manufacturer. Multi-pin LIYY or LY YCY (shielded) cable with 0.14 mm² or 0.25 mm² cross-section. SubD or RSV connector for connection to the interface. The cables are automatically checked the continuity and insulation to guarantee their special functionality for which they have been developed.
