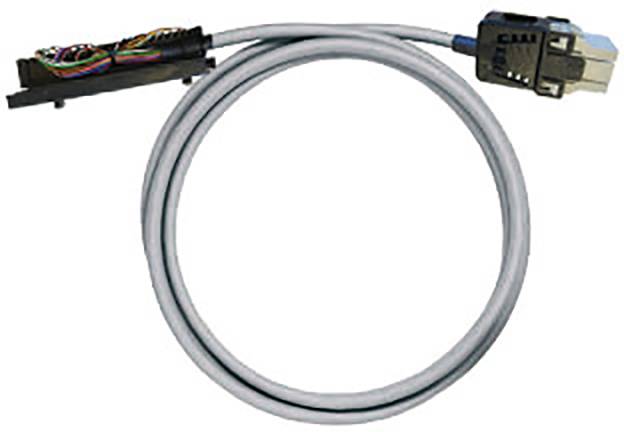

Weidmüller 7789191015 PAC-S300-RV12-V0-1M5 PLC cable
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 195 g
- Storage temperature, max.: 60 °C
- Storage temperature, min.: -10 °C
- Connection SPS: Siemens S7300 6ES7921-3AH00-1AA0 20P
- Connection Interface: WEIDUELLER RSV 12P Connector
- Number of poles, min.: 20 Pole
- Outer diameter: 8.6 ± 1 mm
- Cable: LiYY Material
- : PVC
- conductor cross-section: 0.25 mm²
- Permissible current per path, max.: 1 A
- total current, max. 3 A
- resistance: ≤ 80 mΩ/m
- High voltage test: 1 KV/1s
- Product type
PLC cable
- Operating voltage
250, 250 V DC, V AC (max)
- Max. operating voltage
250 V DC
250 V AC
- Length
1.5 m
- Manufacturer part #
7789191015
- Type
PAC-S300-RV12-V0-1M5
- Max. ambient temperature
+50 °C
- Min. ambient temperature
-10 °C
- Series
SIMATIC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1916240 Weidmüller 7789191015 PAC-S300-RV12-V0-1M5 PLC cable
User & Safety Instructions
User & Safety Instructions 1916240 Weidmüller 7789191015 PAC-S300-RV12-V0-1M5 PLC cable
Description
Plc cable, digital signals, 20 poles, cable LiYY, 1.5 m, 0.25 mm², material PVC
