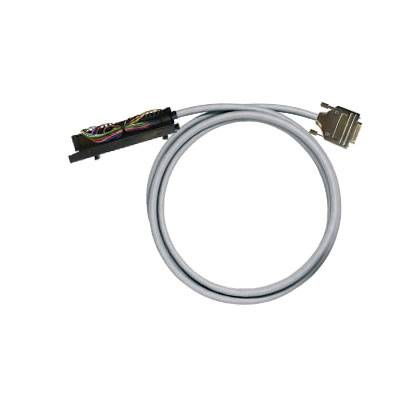

Weidmüller 7789228050 PAC-S300-SD15-V3-5M PLC cable
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Transfer module
- PAC-S300-SD15-V 3-5 m
Technical specifications
- Storage temperature, max.: 60 °C
- Storage temperature, min.: -10 °C
- Connection interface: SUB-D FEMALE 15P
- Connection SPS: SIEMENS S7300 6ES7921-3AH00-1AA0 20P
- Outer diameter: 8.7 ± 1 mm
- Cable: LiYCY
- Wire cross-section: 0.25 mm²
- Nominal voltage: ≤ 60 Vdc ≤ 25 Vac
- Permissible current per path, max.: 1 A
- Total current, max.: 3 A
- Resistance: ≤ 80 mΩ/m
- high voltage test: 1 KV/1s
- Product type
PLC cable
- Manufacturer part #
7789228050
- Type
PAC-S300-SD15-V3-5M
- Type
Cable length 5 m
- Series
SIMATIC
- Cable length
5.00 m
- Material
PVC
- Number of pins
15
- Max. temperature
+50 °C
- Min. temperature
-10 °C
- Weight
744 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 256981 Weidmüller 7789228050 PAC-S300-SD15-V3-5M PLC cable
User & Safety Instructions
User & Safety Instructions 256981 Weidmüller 7789228050 PAC-S300-SD15-V3-5M PLC cable
Description
Transfer module. Pre-fabricated cable, PAC, cable LiYCY, 0.25 mm². The pre-assembled PAC-cable, the electrical and logical connection to the PLC with the PLC interface. This cable consists of the following elements: PLC connection of the manufacturer. Multi-pin LIYY or LY YCY (shielded) cable with 0.14 mm² or 0.25 mm² cross-section. SubD or RSV connector for connection to the interface. The cables are automatically checked the continuity and insulation to guarantee their special functionality for which they have been developed.
