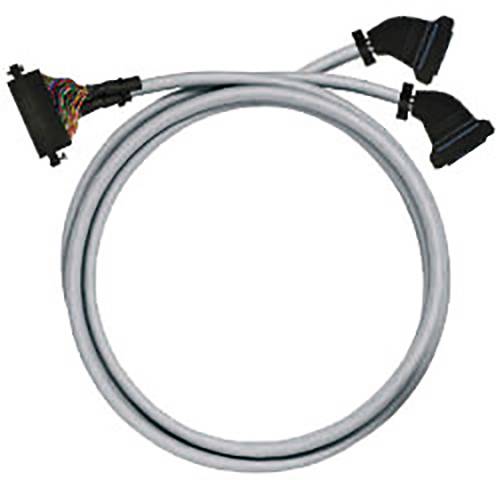

Weidmüller 7789246015 PAC-S300-HE20-V7-1M5 PLC cable
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 350 g
- storage temperature, max.: 60 °C
- storage temperature, min.: -10 °C
- connection SPS: Fujitsu FCN363J040 40P
- connection interface: 2x CONTTOR CABLE PLANO HE10 20P
- number of poles, min.: 20 poles
- outer diameter: 8.6 ± 1 mm
- cable: LiYY cable
- material: PVC
- conductor cross-section: 0.25 mm²
- permissible current per path, max.: 1 A
- total current, max. 3 A
- resistance: ≤ 80 mΩ/m
- High voltage test: 1 KV/1s
- Product type
PLC cable
- Operating voltage
60, 25 V DC, V AC (max)
- Max. operating voltage
60 V DC
25 V AC
- Length
1.5 m
- Manufacturer part #
7789246015
- Type
PAC-S300-HE20-V7-1M5
- Max. ambient temperature
+50 °C
- Min. ambient temperature
-10 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1917662 Weidmüller 7789246015 PAC-S300-HE20-V7-1M5 PLC cable
User & Safety Instructions
User & Safety Instructions 1917662 Weidmüller 7789246015 PAC-S300-HE20-V7-1M5 PLC cable
Description
Plc cable, digital signals, 20 poles, cable LiYY, 1.5 m, 0.25 mm², material PVC
