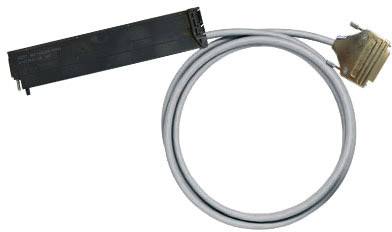

Weidmüller 7789285020 PAC-S400-SD25-V0-2M PLC cable
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 544 g
- Storage temperature, max.: 60 °C
- Storage temperature, min.: -10 °C
- Connection SPS: Siemens S7400 6ES7492-1CL00-0AA0 48P
- Connection Interface: Sub-D FEMALE 25P
- Number of poles, min.: 25 Pole
- Outer diameter: 10.15 ± 1 mm
- Cable: LiYCY Material
- : PVC
- Cross-section: 0.25 mm²
- Permissible current per path, max.: 1 A
- Total current, max.: 3 A
- resistance: ≤ 80 mΩ/m
- High voltage test: 1 KV/1s
- Product type
PLC cable
- Operating voltage
60, 25 V DC, V AC (max)
- Max. operating voltage
60 V DC
25 V AC
- Length
2 m
- Manufacturer part #
7789285020
- Type
PAC-S400-SD25-V0-2M
- Max. ambient temperature
+50 °C
- Min. ambient temperature
-10 °C
- Series
S7-400
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1915274 Weidmüller 7789285020 PAC-S400-SD25-V0-2M PLC cable
User & Safety Instructions
User & Safety Instructions 1915274 Weidmüller 7789285020 PAC-S400-SD25-V0-2M PLC cable
Description
Plc connection cable, analog signals, 25 poles, cable LiYCY, 2m, 0.25 mm², material PVC
