Weidmüller 7789306010 PAC-UNIV-HE20-LCH-1M PLC cable
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

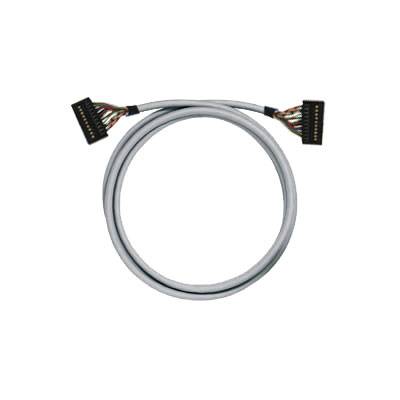

Pre-fabricated data cable
- PAC UNIV-HE 20-LCH-1M
Technical specifications
- Storage temperature, max.: 60 °C
- Storage temperature, min.: -10 °C
- Connection interface: FLAT CABLE CONTTOR HE10 20P
- Connection SPS: FLAT CABLE CONTTOR HE10 20P
- Outer diameter: 8.6 ± 1 mm
- Cable: Cable LiYY
- Wire cross-section: 0.14 mm²
- Nominal voltage: ≤ 60 Vdc ≤ 25 Vac
- Permissible current per path, max.: 1 A
- Total current, max.: 3 A
- resistance: ≤ 150 mΩ/m
- High voltage test: 1 KV/1s
- Product type
PLC cable
- Manufacturer part #
7789306010
- Type
PAC-UNIV-HE20-LCH-1M
- Cable length
1.00 m
- Material
PVC
- Number of pins
20
- Max. temperature
+50 °C
- Min. temperature
-10 °C
- Weight
66 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 257237 Weidmüller 7789306010 PAC-UNIV-HE20-LCH-1M PLC cable
User & Safety Instructions
User & Safety Instructions 257237 Weidmüller 7789306010 PAC-UNIV-HE20-LCH-1M PLC cable
Description
Pre-fabricated data cable. Pre-fabricated cable, PAC, cable LiYY, 0.14 mm². The pre-assembled PAC-cable, the electrical and logical connection to the PLC with the PLC interface. This cable consists of the following elements: PLC connection of the manufacturer. Multi-pin LIYY or LY YCY (shielded) cable with 0.14 mm² or 0.25 mm² cross-section. SubD or RSV connector for connection to the interface. The cables are automatically checked the continuity and insulation to guarantee their special functionality for which they have been developed.
