Weidmüller 7789387020 PAC-M340-HE20-V0-2M PLC cable 60 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

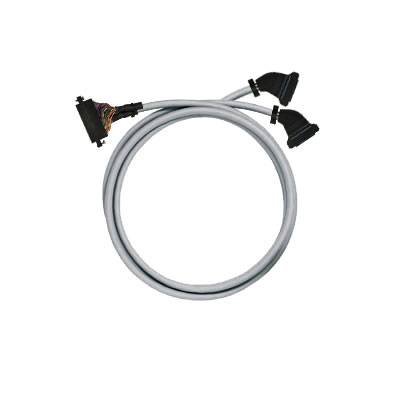

Pre-fabricated data cable
- PAC-M340-U20-V 0-2 m
Technical specifications
- Storage temperature, max.: 60 °C
- Storage temperature, min.: -10 °C
- Connection interface: 2X CONTTOR CABLE PLANO HE10 20P
- Connection SPS: FUJITSU FCN363J040 40P
- Outer diameter: 8.6 ± 1 mm
- Cable: LiYY
- Wire cross-section: 0.25 mm²
- Nominal voltage: ≤ 60 Vdc ≤ 25 Vac
- Permissible current per path, max.: 1 A
- Total current, max.: 3 A
- resistance: ≤ 80 mΩ/m
- High voltage test: 1 KV/1s
- Product type
PLC cable
- Operating voltage
60 V DC
- Height
220 mm
- Length
30 mm
- Width
190 mm
- Dim
(L x W x H) 30 x 190 x 220 mm
- Manufacturer part #
7789387020
- Type
PAC-M340-HE20-V0-2M
- Type
Cable length 2 m
- Cable length
2.00 m
- Material
PVC
- Number of pins
20
- Max. temperature
+50 °C
- Min. temperature
-10 °C
- Weight
466.33 g
PLC - other devices
20
2 m
Connection plug board
Connection plug board
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 257439 Weidmüller 7789387020 PAC-M340-HE20-V0-2M PLC cable 60 V DC
User & Safety Instructions
User & Safety Instructions 257439 Weidmüller 7789387020 PAC-M340-HE20-V0-2M PLC cable 60 V DC
Description
Pre-fabricated data cable. Pre-fabricated cable, PAC, cable LiYY, 0.25 mm². The pre-assembled PAC-cable, the electrical and logical connection to the PLC with the PLC interface. This cable consists of the following elements: PLC connection of the manufacturer. Multi-pin LIYY or LY YCY (shielded) cable with 0.14 mm² or 0.25 mm² cross-section. SubD or RSV connector for connection to the interface. The cables are automatically checked the continuity and insulation to guarantee their special functionality for which they have been developed.
