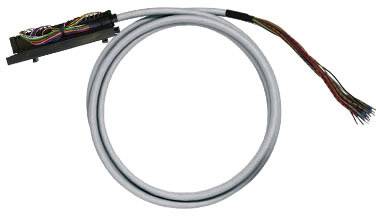

Weidmüller 7789607030 PAC-S300-UNIS-V0-3M PLC cable
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 547 g
- Storage temperature, max.: 60 °C
- Storage temperature, min.: -10 °C
- Connection SPS: Siemens S7300 6ES7921-3AH00-1AA0 20P
- Connection interface: H0.25/10 (FERRULES 0,25mm²)
- Number of poles, min.: 25 Pole
- Outer diameter: 10.15 ± 1 mm
- Cable: LiYCY Material
- : PVC
- conductor cross-section: 0.25 mm²
- Permissible current per path, max.: 1 A
- Total current, max.: 3 A
- resistance: ≤ 80 mΩ/m
- High voltage test: 1 KV/1s
- Product type
PLC cable
- Operating voltage
250, 250 V DC, V AC (max)
- Max. operating voltage
250 V DC
250 V AC
- Length
3 m
- Manufacturer part #
7789607030
- Type
PAC-S300-UNIS-V0-3M
- Max. ambient temperature
+50 °C
- Min. ambient temperature
-10 °C
- Series
SIMATIC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1915667 Weidmüller 7789607030 PAC-S300-UNIS-V0-3M PLC cable
User & Safety Instructions
User & Safety Instructions 1915667 Weidmüller 7789607030 PAC-S300-UNIS-V0-3M PLC cable
Description
Plc connection cable, analog signals, 25 poles, cable LiYCY, 3m, 0.25 mm², material PVC
