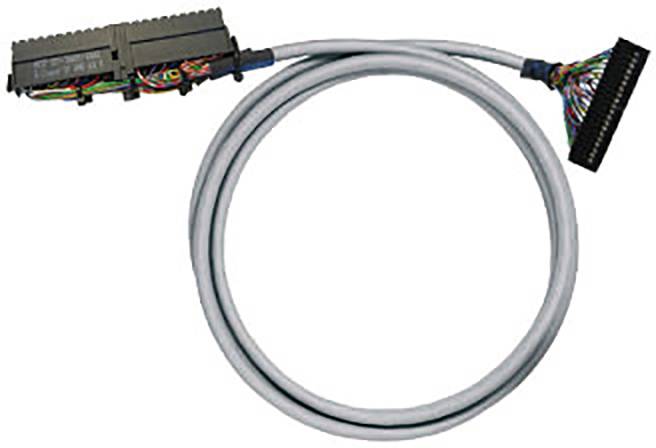

Weidmüller 7789759060 PAC-S300-HE40-S-V0-6M PLC cable
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 1,530 g
- Storage temperature, max.: 60 °C
- Storage temperature, min.: -10 °C
- Connection SPS: Siemens S7300 6ES7921-3AH20-1AA0 40P
- Connection Interface: Flat CABLE PLANO HE10 40P
- Number of poles, min.: 40 Pole
- Outer diameter: 12.4 ± 1 mm
- Cable: LiYY
- Material: PVC
- Wire cross-section: 0.25 mm²
- Permissible current per path, max.: 1 A
- total current, max. 3 A
- resistance: ≤ 80 mΩ/m
- High voltage test: 1 KV/1s
- Product type
PLC cable
- Operating voltage
60, 25 V DC, V AC (max)
- Max. operating voltage
60 V DC
25 V AC
- Length
6 m
- Manufacturer part #
7789759060
- Type
PAC-S300-HE40-S-V0-6M
- Max. ambient temperature
+50 °C
- Min. ambient temperature
-10 °C
- Series
SIMATIC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1917025 Weidmüller 7789759060 PAC-S300-HE40-S-V0-6M PLC cable
User & Safety Instructions
User & Safety Instructions 1917025 Weidmüller 7789759060 PAC-S300-HE40-S-V0-6M PLC cable
Description
Plc cable, digital signals, 40 poles, cable LiYY, 6 m, 0.25mm², material PVC
