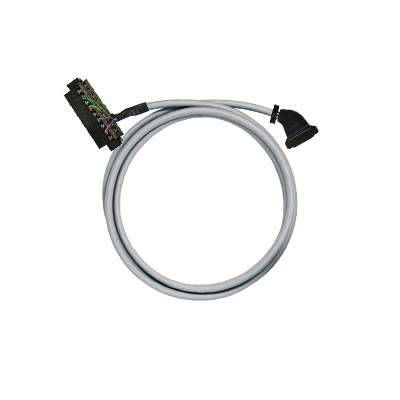

Weidmüller 7789769030 PAC-CMLX-HE20-V5-3M PLC cable
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Pre-fabricated data cable
- PAC CMLX-HE 20-V 5-3 m
Technical specifications
- Storage temperature, max.: 60 °C
- Storage temperature, min.: -10 °C
- Connection Interface: FLAT CABLE CONTTOR HE10 20P
- Connection SPS: ROCKWELL COMPACT LOGIX 1769-RTBN 18P
- Outer diameter: 8.6 ± 1 mm
- Cable: LiYY
- Wire cross-section: 0.25 mm²
- Nominal voltage: ≤ 60 Vdc ≤ 25 Vac
- Permissible current per path, max.: 1 A
- Total current, max.: 3 A
- resistance: ≤ 80 mΩ/m
- High voltage test: 1 KV/1s
- Product type
PLC cable
- Height
335 mm
- Length
85 mm
- Width
145 mm
- Dim
(L x W x H) 85 x 145 x 335 mm
- Manufacturer part #
7789769030
- Type
PAC-CMLX-HE20-V5-3M
- Type
Cable length 3 m
- Cable length
3.00 m
- Material
PVC
- Number of pins
20
- Max. temperature
+50 °C
- Min. temperature
-10 °C
- Weight
524 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 257582 Weidmüller 7789769030 PAC-CMLX-HE20-V5-3M PLC cable
User & Safety Instructions
User & Safety Instructions 257582 Weidmüller 7789769030 PAC-CMLX-HE20-V5-3M PLC cable
Description
Pre-fabricated data cable. Pre-fabricated cable, PAC, cable LiYY, 0.25 mm². The pre-assembled PAC-cable, the electrical and logical connection to the PLC with the PLC interface. This cable consists of the following elements: PLC connection of the manufacturer. Multi-pin LIYY or LY YCY (shielded) cable with 0.14 mm² or 0.25 mm² cross-section. SubD or RSV connector for connection to the interface. The cables are automatically checked the continuity and insulation to guarantee their special functionality for which they have been developed.
