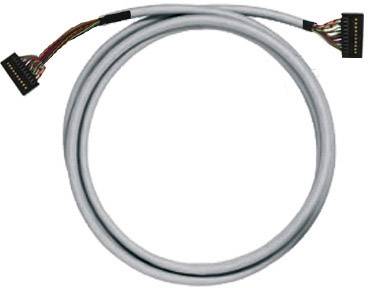

A grey round cable with black connectors at both ends, suitable for computer or technical applications.

Image similar

A grey round cable with black connectors at both ends, suitable for computer or technical applications.

Image similar

Weidmüller

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Net weight: 195 g
Storage temperature, max.: 60 °C
Storage temperature, min.: -10 °C
Connection SPS: HE10 20P
Connection Interface: HE10 20P
Number of poles, min.: 20 Pole
Outer diameter: 8.6 ± 1 mm
Cable: LiYY Material
: PVC
Wire cross-section: 0.25 mm²
Permissible current per path, max.: 1 A
Total current, max.: 3 A
Resistance: ≤ 80 mΩ/m
high voltage test: 1 KV/1s

Product type: PLC cable

Operating voltage: 60, 25 V DC, V AC (max)

Max. operating voltage: 60 V DC
25 V AC

Length: 1.5 m

Manufacturer part #: 7789806015

Type: PAC-UNIV-HE20-FD1-1M5

Max. ambient temperature: +50 °C

Min. ambient temperature: -10 °C

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1915452 Weidmüller 7789806015 PAC-UNIV-HE20-FD1-1M5 PLC cable

User & Safety Instructions

User & Safety Instructions 1915452 Weidmüller 7789806015 PAC-UNIV-HE20-FD1-1M5 PLC cable
