Weidmüller 7789807020 PAC-UNIV-HE20-S25-2M PLC cable

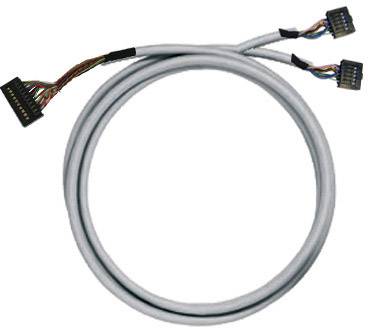

'A grey cable with multiple coloured wires and plugs at both ends.'

'A grey cable with multiple coloured wires and plugs at both ends.'

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Net weight: 422 g
Storage temperature, max.: 60 °C
Storage temperature, min.: -10 °C
Connection SPS: HE10 20P
Connection Interface: Sub-D FEMALE 25P
Number of poles, min.: 20 Pole
Outer diameter: 10.15 ± 1 mm
Cable: LiYCY Cable
Material: PVC
conductor cross-section: 0.25 mm²
Permissible current per path, max.: 1 A
Total current, max.: 3 A
resistance: ≤ 80 mΩ/m
High voltage test: 1 KV/1s

Product type: PLC cable

Operating voltage: 60, 25 V DC, V AC (max)

Max. operating voltage: 60 V DC
25 V AC

Length: 2 m

Manufacturer part #: 7789807020

Type: PAC-UNIV-HE20-S25-2M

Max. ambient temperature: +50 °C

Min. ambient temperature: -10 °C

UKCA: yes
