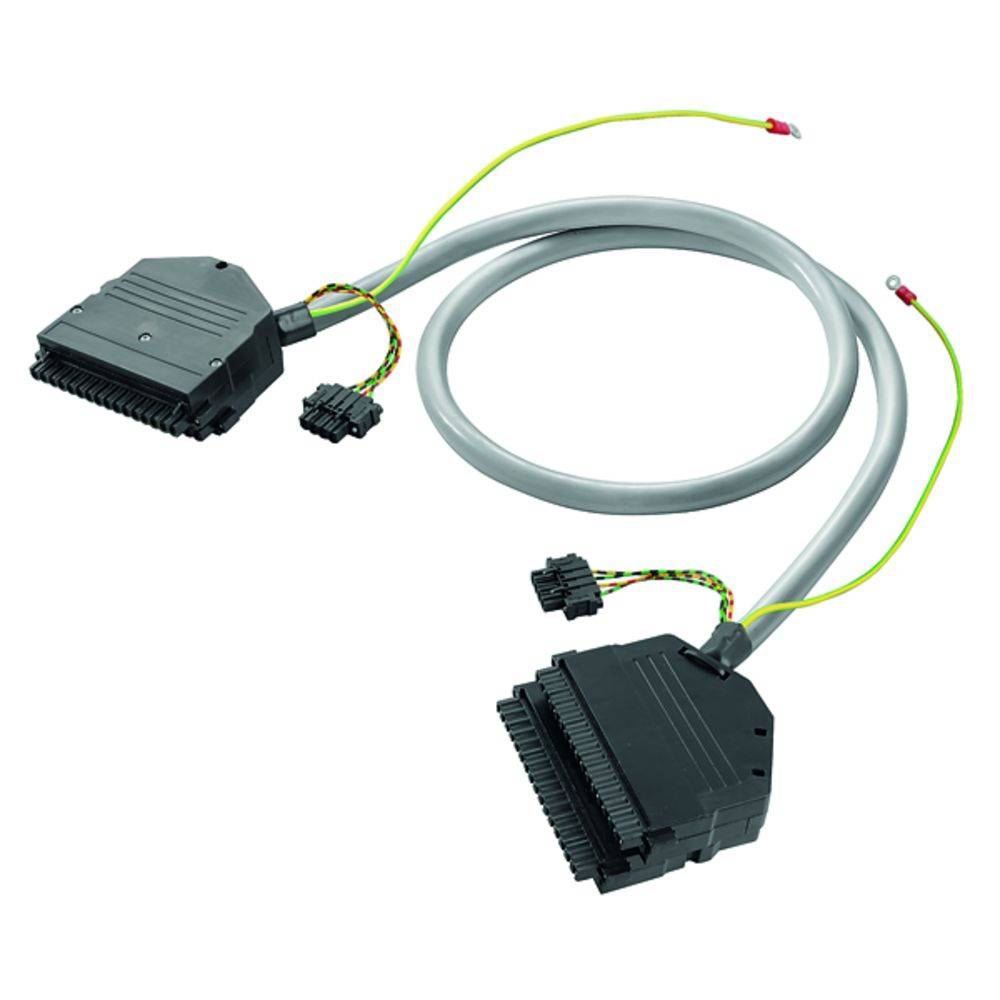

Weidmüller 7789884050 PAC-C300-3636-25-05 PLC cable 250 V DC/AC
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Pre-fabricated data cable
- PAC-C -25-05 300-3636
Technical specifications
- Storage temperature, max.: 60 °C
- Storage temperature, min.: -10 °C
- Connection interface: 2 x BLC 5.08/16/180BR BK, BLC 5.08/4/180BR BK
- Connection SPS: 2 x BLC 5.08/16/180BR BK, BLC 5.08/4/180BR BK
- Outer diameter: 11.85 ± 1 mm
- Cable: LiYCY
- Wire cross-section: 0.25 mm²
- Nominal voltage: ≤ 250 V dc ≤ 250 V ac
- allowable current per path, max. 1 A
- total current, max. 3 A
- resistance: ≤ 80 mΩ/m
- High voltage test: 1 KV/1s
- Product type
PLC cable
- Operating voltage
250 V DC/AC
- Manufacturer part #
7789884050
- Type
PAC-C300-3636-25-05
- Cable length
5.00 m
- Material
PVC
- Number of pins
36
- Max. temperature
+50 °C
- Min. temperature
-10 °C
- Weight
1150 g
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 257651 Weidmüller 7789884050 PAC-C300-3636-25-05 PLC cable 250 V DC/AC
User & Safety Instructions
User & Safety Instructions 257651 Weidmüller 7789884050 PAC-C300-3636-25-05 PLC cable 250 V DC/AC
Description
Pre-fabricated data cable. Cable LiYCY, 0.25 mm². The pre-assembled cable enables the simple, fast and error-free connection between the IOTAs (input-output terminal assemblies) of Honeywell C300 and the FTAs (Field Terminal assemblies) from Weidmüller. The cable can be used with single or double plug-in connectors and also as a free design with pin cable connectors. The housing simplifies the handling and offers a robust connection to the IOTA. In addition, the use of different cable cross-sections and lengths up to 50 m is possible.
