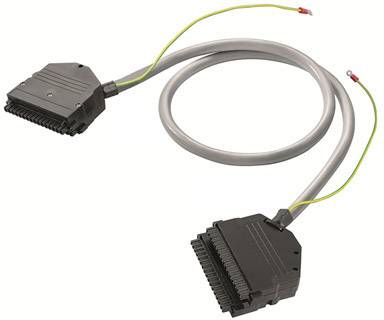

Electrical interface cable with a grey outer sheath and black connectors at both ends, connected by an earth wire.

Image similar

Electrical interface cable with a grey outer sheath and black connectors at both ends, connected by an earth wire.

Image similar

Weidmüller

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Net weight: 3.270 g
Storage temperature, max.: 60 °C
Storage temperature, min.: -10 °C
Connection SPS: SP-BLZ 5.08 32P with CLAMSHELL
Connection Interface: SP-BLZ 5.08 32P with CLAMSHELL
Number of poles, min.: 32 Pole
Outer diameter: 13.9 ± 1 mm
Cable: LiYCY Material
: PVC
Wire cross-section: 0.34 mm²
Permissible current per path, max.: 1 A
total current, max.: 4 A
resistance: ≤ 57 mΩ/m
High voltage test: 1 KV/1s

Product type: PLC cable

Operating voltage: 250, 250 V DC, V AC (max)

Max. operating voltage: 250 V DC
250 V AC

Length: 10 m

Manufacturer part #: 7789888100

Type: C300-32B-320B-2S-M34-10

Max. ambient temperature: +50 °C

Min. ambient temperature: -10 °C

UKCA: yes
