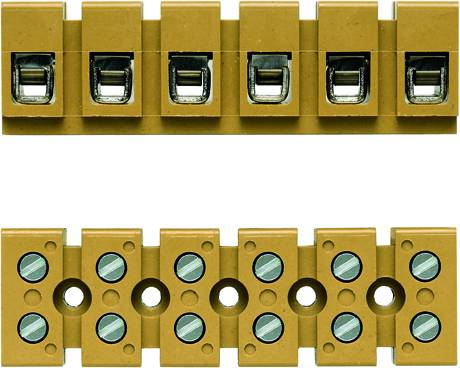

Weidmüller 7906230000 Terminal Screws Medium yellow 50 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Terminal
Connection
Screws
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
Highlights & Details
Multi-pin terminal strip
- MK 6/3/E
Our service for you
Technical specifications
- Packaging type
Piece
- Product type
Terminal
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
6 mm²
- Factory colour
Medium yellow
- Manufacturer part #
7906230000
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
MK 6/3/E
- Dim
(L x W x H) 36.5 x 23 x 22 mm
- Width
23 mm
- Height
22 mm
- Length
36.5 mm
- RoHS-compliant
Yes
- Weight
32.34 g
- Insulation material
PA
- Type
MK 6/3/E
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 391098 Weidmüller 7906230000 Terminal Screws Medium yellow 50 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 391098 Weidmüller 7906230000 Terminal Screws Medium yellow 50 pc(s) Piece
Description
Multi-pin terminal strip. Rated cross-section: 6 mm², screw connection, direct mounting. Multi-pin terminal strips are established at Weidmüller for many years. The terminal blocks can be screwed directly on the housing a re-tighten the clamp screw by setting the conductor even in these terminals is not required. The terminal blocks are in the Materials KRG and PA and with different connection techniques available.
