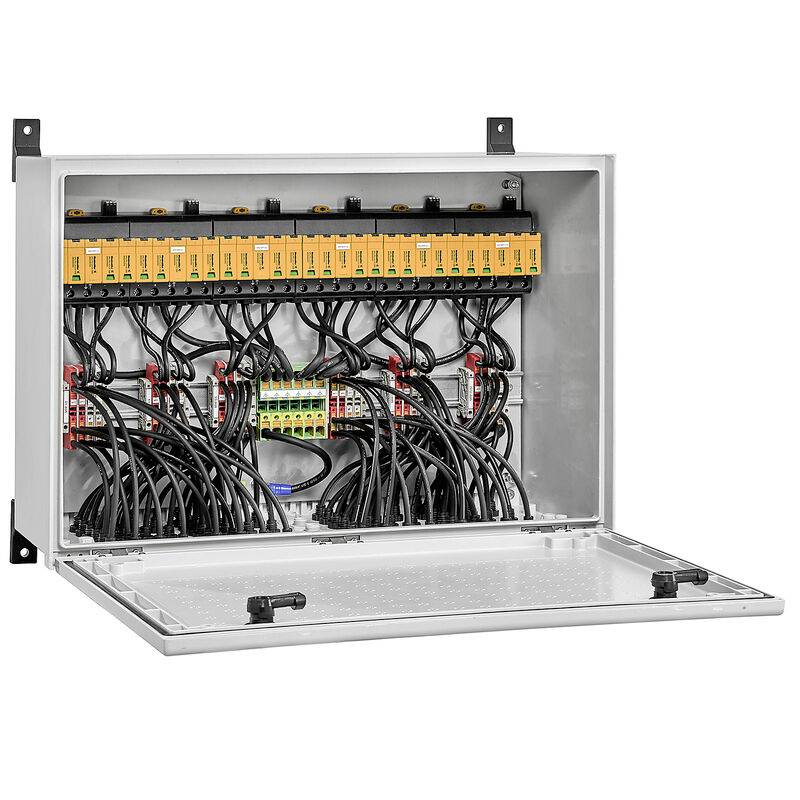

Weidmüller 8000115469 PVC DC 2I 2O 12MPP SPD1R WM4 11 Generator junction box
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Compatible with (details)
Photovoltaic
- Product type
Generator junction box
- Dim
(W x D) 600 mm x 257 mm
- Type
12 MPP
- Factory colour
White
- Content
1 pc(s)
- Width
600 mm
- Depth
257 mm
- System voltage
1100 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3752205 Weidmüller 8000115469 PVC DC 2I 2O 12MPP SPD1R WM4 11 Generator junction box
User & Safety Instructions
User & Safety Instructions 3752205 Weidmüller 8000115469 PVC DC 2I 2O 12MPP SPD1R WM4 11 Generator junction box
Description
Generator connection box for inverters with 12 MPP trackers, suitable for protecting the DC side of a photovoltaic system according to DIN CLC/TS 51643-32. MPP1: 1 inputs, connection via WM4-C connector, compatible with the cable version TÜV 2 Pfg1169/08.07 / EN 50618:2063 2 outputs, connection via WM4-C connector, compatible with the cable version TÜV 2 Pfg1169/08.07 / EN 50618:2063 MPP2 to 12: Identical to MPP1 Max. Volut voltage Uoc: 1,100 VDC 1 class/type I + II combined conductor with signal contact Connection of the signal contact via M16 cable glands (clamping range 5–10 mm Ø) Max. Cable diameter: 1.5 mm² Connection of the functional ground via M16 cable glands (clamping range 5–10 mm Ø) Cable diameter >: = 16 mm² Protection class: IP65 All components are housed in a glass-fiber reinforced polyester housing. Dimensions HxWxT: 485x600x257 mm approval according to low-voltage switchgear IEC 61439-1 and EN 61439-2
