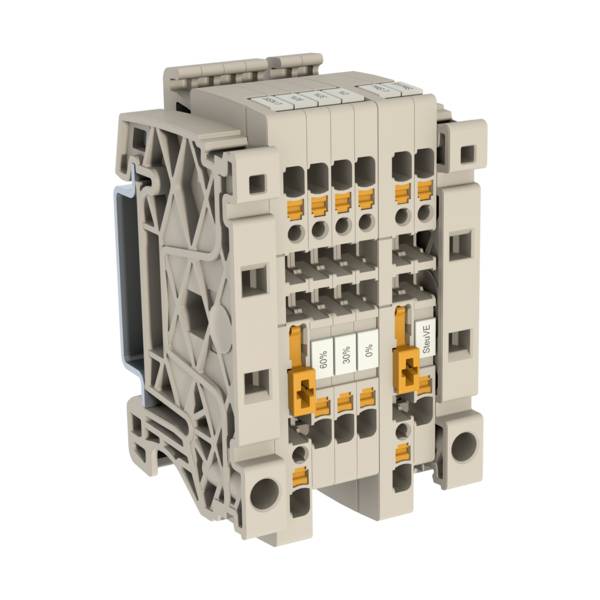

Weidmüller 8000169496 N terminal/serial terminal Jack connector Beige 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
N terminal/serial terminal
Connection
Jack connector
Cross section (flexible) (max.)
1.5 mm²
Cross section (inflexible) (max.)
1.5 mm²
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
N terminal/serial terminal
- Connection
Jack connector
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- No. of rows
1
- Pins per row
12
- Factory colour
Beige
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Nominal voltage
400 V
- Manufacturer part #
8000169496
- Content
1 pc(s)
- Type
14A-9 EEG-AAR KLEMMBLOCK-BDEW 2.5mm
- Dim
(L x W) 36.9 mm x 37.2 mm
- Width
37.2 mm
- Length
36.9 mm
- Flammability rating
V0
- Connector colour
Beige
- Insulation material
Thermoplastic
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3748434 Weidmüller 8000169496 N terminal/serial terminal Jack connector Beige 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3748434 Weidmüller 8000169496 N terminal/serial terminal Jack connector Beige 1 pc(s) Piece
Description
Series terminal for disconnecting circuits for testing or measurements.
