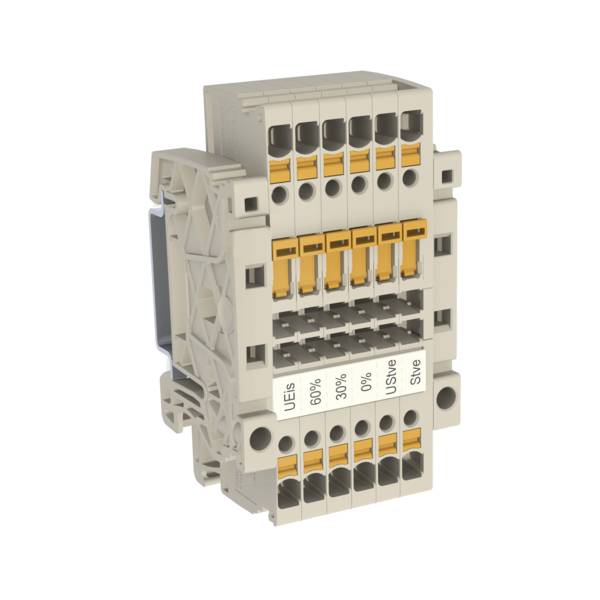

Weidmüller 8000177103 N terminal/serial terminal Jack connector Beige 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
N terminal/serial terminal
Connection
Jack connector
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
2.5 mm²
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
N terminal/serial terminal
- Features
+ test option
- Connection
Jack connector
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- No. of rows
1
- Pins per row
12
- Factory colour
Beige
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Nominal voltage
400 V
- Manufacturer part #
8000177103
- Content
1 pc(s)
- Type
14A-9 EEG-AAR KLEMMBLOCK-BDEW 6TR
- Dim
(L x W) 38.4 mm x 44.7 mm
- Width
44.7 mm
- Length
38.4 mm
- Flammability rating
V0
- Connector colour
Beige
- Insulation material
Thermoplastic
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3748436 Weidmüller 8000177103 N terminal/serial terminal Jack connector Beige 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3748436 Weidmüller 8000177103 N terminal/serial terminal Jack connector Beige 1 pc(s) Piece
Description
Series terminal for disconnecting circuits for testing or measurements.
