Weidmüller 8216370000 FBK 40/200 RK PLC cable
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Plc Cable
- FBK 40/200RK
Technical specifications
- Storage temperature, max.: 70 °C
- Storage temperature, min.: -10 °C
- Connection interface: FLAT CABLE PLANO HE10 40P
- Connection SPS: FLAT CABLE PLANO HE10 40P
- Cable: LiYY
- Wire cross-section: 0.14 mm²
- Nominal voltage:< 50 V AC, ≤ 50 V DC
- Permissible current per path, max.: 1 A
- Total current, max.: 3 A
- resistor 55 mΩ/m
- Product type
PLC cable
- Height
330 mm
- Length
20 mm
- Width
40 mm
- Dim
(L x W x H) 20 x 40 x 330 mm
- Manufacturer part #
8216370000
- Type
FBK 40/200 RK
- Cable length
2.00 m
- Material
PVC
- Number of pins
40
- Weight
329 g
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 257934 Weidmüller 8216370000 FBK 40/200 RK PLC cable
User & Safety Instructions
User & Safety Instructions 257934 Weidmüller 8216370000 FBK 40/200 RK PLC cable
Description

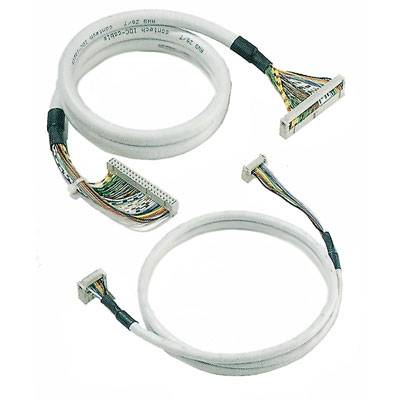

Plc cable. Pre-fabricated cable, FBK, CONNECTOR CABLE PLANO HE 10 40 P. The pre-assembled control cable has plug-in 10- or 40-pin socket strips according to IEC 603/1 DIN 41 651. It is used there for the connection of the PLC front adapter to the active or passive Weidmüller interfaces. They are available in different lengths.
