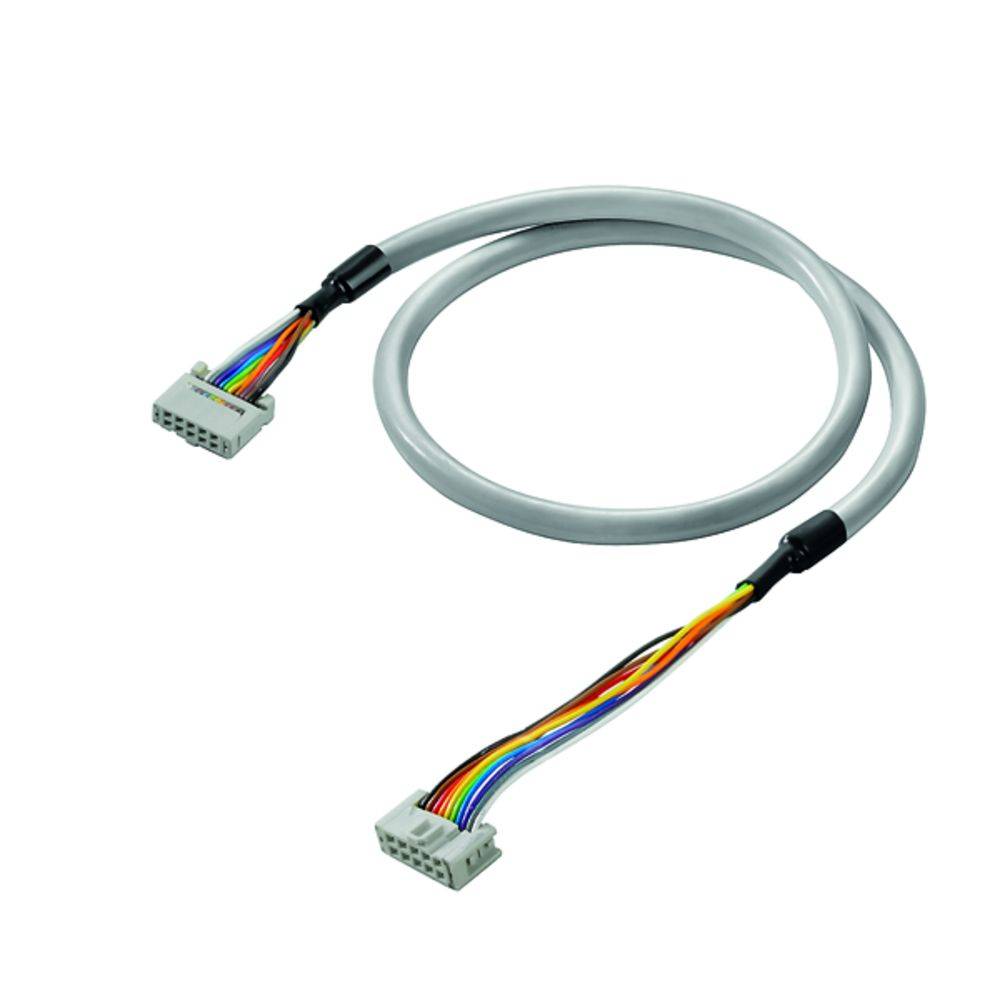

Weidmüller 8235360000 FBK 10/100 RK PLC cable
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Plc Cable
- FBK 10/100 RK
Technical specifications
- Storage temperature, max.: 70 °C
- Storage temperature, min.: -10 °C
- Connection Interface: FLAT CABLE CONTTOR HE10 10P
- Connection SPS: FLAT CABLE CONTTOR HE10 10P
- Cable: LiYY
- Wire cross-section: 0.14 mm²
- Nominal voltage<: 50 V AC, ≤ 50 V DC
- Permissible current per path, max.: 1 A
- Total current, max.: 3 A
- resistor 55 mΩ/m
- Product type
PLC cable
- Height
245 mm
- Length
15 mm
- Width
30 mm
- Dim
(L x W x H) 15 x 30 x 245 mm
- Manufacturer part #
8235360000
- Type
FBK 10/100 RK
- Cable length
1.00 m
- Material
PVC
- Number of pins
10
- Weight
68 g
PLC - other devices
10
1 m
Connection plug board
Connection plug board
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 257950 Weidmüller 8235360000 FBK 10/100 RK PLC cable
User & Safety Instructions
User & Safety Instructions 257950 Weidmüller 8235360000 FBK 10/100 RK PLC cable
Description
Plc cable. Pre-fabricated cable, FBK, CONNECTOR CABLE PLANO U10 10P. The pre-assembled control cable has plug-in 10- or 40-pin socket strips according to IEC 603/1 DIN 41 651. It is used there for the connection of the PLC front adapter to the active or passive Weidmüller interfaces. They are available in different lengths.
