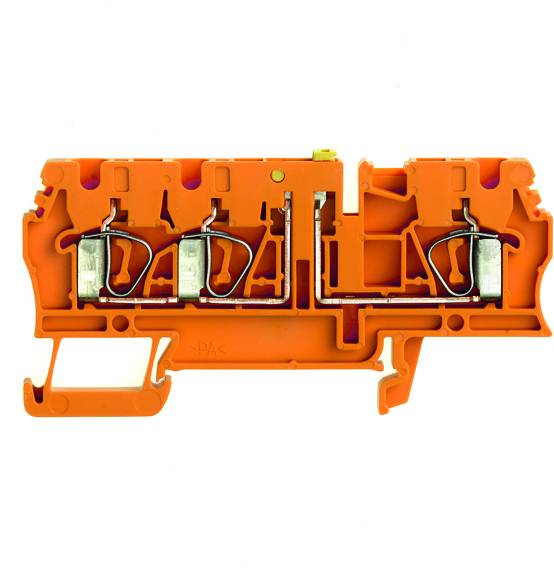

Weidmüller 8731690000 Serial test terminal Pull spring Orange 100 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Serial test terminal
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
Highlights & Details
Checks racing series terminal
- ZTR 2.5/3AN OR
Our service for you
Technical specifications
- Packaging type
Piece
- Product type
Serial test terminal
- Connection
Pull spring
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Factory colour
Orange
- Manufacturer part #
8731690000
- Content
100 pc(s)
- Industrial packaging
Yes
- Type
ZTR 2.5/3AN OR
- Dim
(L x W x H) 79.5 x 5.1 x 38.5 mm
- Width
5.1 mm
- Height
38.5 mm
- Length
79.5 mm
- RoHS-compliant
Yes
- Weight
11.96 g
- Connector colour
Orange
- Type
ZTR 2.5/3 AT OR
Documents & Downloads
Datasheet
Datasheet 391676 Weidmüller 8731690000 Serial test terminal Pull spring Orange 100 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 391676 Weidmüller 8731690000 Serial test terminal Pull spring Orange 100 pc(s) Piece
Description
Checks racing series terminal. Z-series terminal checks racing terminal, rated cross-section: 2.5 mm², spring-cage connection, Wemid, orange, direct mounting
