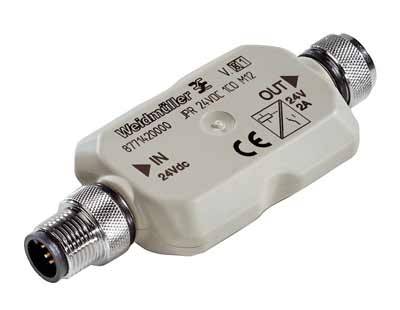

Weidmüller 8771430000 Sensor/actuator splitter/adapter M12 Plug, straight, Socket, right angle No. of pins (RJ): 1 1 pc(
EAN:
Part number:
Item no:
Product type
Sensor/actuator splitter/adapter
Connector type
Plug, straight
Socket, right angle
Connector standard
Coupling relay
Connection side A
M12 socket, straight
Connection side B
M12 socket, straight
Datasheet (PDF)
Highlights & Details
Relay coupler
- JPR 24VDC ISO 1 CO M12
Technical specifications
- Packaging type
Piece
- Type
JPR 24VDC ISO 1CO M12
- Product type
Sensor/actuator splitter/adapter
- Connector type
Plug, straight
Socket, right angle
- Connector standard
Coupling relay
- Connection side A
M12 socket, straight
- Connection side B
M12 socket, straight
- No. of pins
1
- Nominal current
8 mA
- Nominal current - rounded value
8 mA
- Connection
Jack connector
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Coding
A
IP67
- Features
A-coded
- Min. temperature
-30 °C
- Max. temperature
+90 °C
- Seal type
Screw-on
- Manufacturer part #
8771430000
- Content
1 pc(s)
- RoHS-compliant
Yes
36
14.4 mm
83 mm
FALSE
Polarity free
Mono stable
FALSE
Single contact
TRUE
Plug-in connection
19.2-28.8 V
IP67
FALSE
Other not-copper alloys
DC
0
0
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 258292 Weidmüller 8771430000 Sensor/actuator splitter/adapter M12 Plug, straight, Socket, right angle No. of pins (RJ): 1 1 pc(
User & Safety Instructions
User & Safety Instructions 258292 Weidmüller 8771430000 Sensor/actuator splitter/adapter M12 Plug, straight, Socket, right angle No. of pins (RJ): 1 1 pc(
Description
Relay coupler. JACKPAC, number of contacts: 1, Co, AgSnO, nominal control voltage: 24 V DC ± 20%, Continuous current: 2 A, M12 plug / socket A coded. The switching amplifier makes 24V DC switching outputs to a maximum of 2 A. The switching voltage at the output via a T-distributor.
