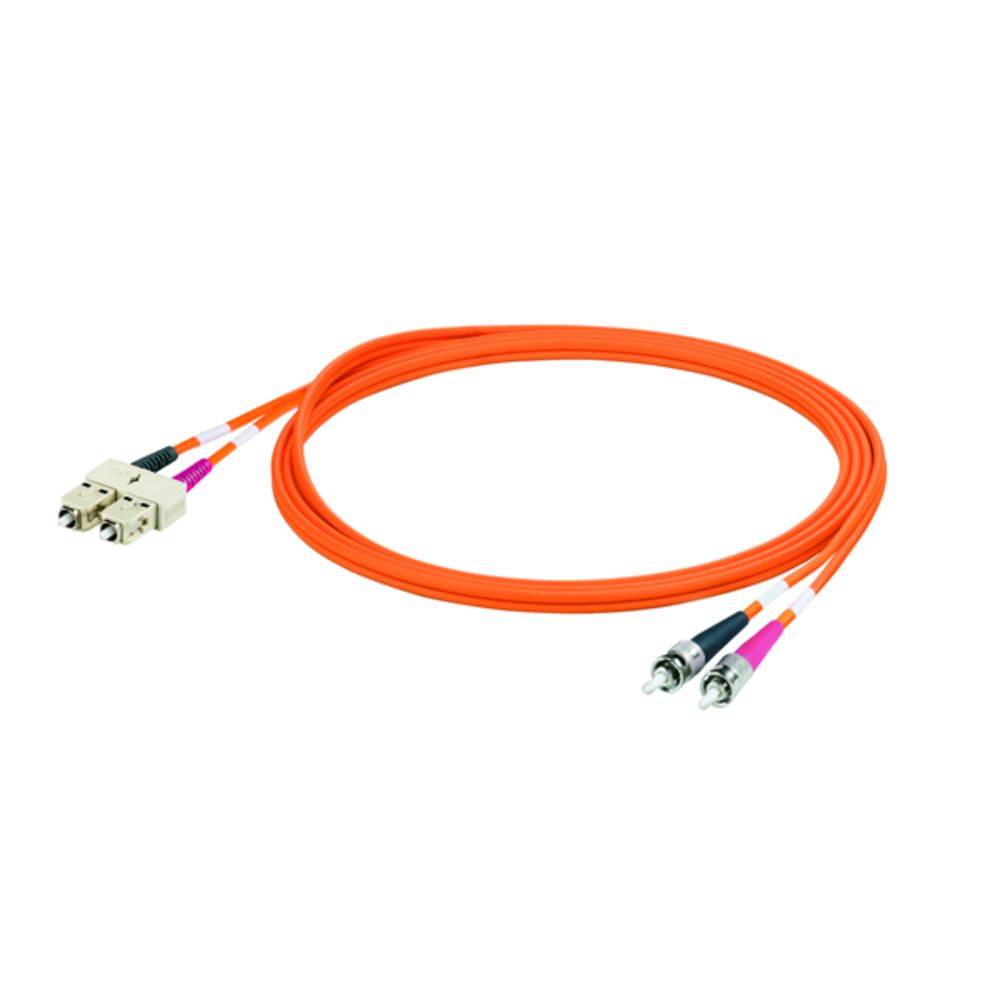

Weidmüller 8896340100 Fibreglass FO Cable 10.00 m Orange [1x SC plug - 1x ST plug] 50/125 µ Multimode OM2
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
- SC plug to ST plug
- Duplex-Cable
- Factory colour: Orange
Technical specifications
- Net weight 138 g
- Operating temperature: -5 °C...75 °C.
- Core diameter: 50 µm
- Sheath diameter: 3*6 mm
- Cable setup: ZIPCORD
- Material sheath: PVC
- Bending radius, min., once: 30 mm
- Bending radius min, repeated: 60 mm
- Bandwidth: ≥ 600 MHz*km at 850 nm, ≥ 1200 MHz*km at 1300 nm
- Fiber type: GOF, multimode, OM2
- Product type
FO Cable
- Connection type
Fibreglass
- No. of A connectors
1 x
- Type A
SC plug
- No. of B connections
1 x
- Type B
ST plug
- Fibre type
50/125 µ
Multimode OM2
Duplex
- Attenuation
≤ 2.7 dB/km at 850 nm / ≤ 0.7 dB/km at 1,300 Nm
- Halogen-free
No
- Cable length
10.00 m
- Factory colour
Orange
- Content
1 pc(s)
- Connector version
straight
- Cable design
Round
FO
- Cable use
FO
- Version
Cable
- Width
155 mm
- UKCA
not relevant
![Weidmüller 8896340100 Fibreglass FO Cable 10.00 m Orange [1x SC plug - 1x ST plug] 50/125 µ Multimode OM2](https://asset.conrad.com/media10/isa/160267/c1/-/en/258370_BB_00_LO/image.jpg?x=100&y=100)
Documents & Downloads
Datasheet
Datasheet 258617 Weidmüller 8896340100 Fibreglass FO Cable 10.00 m Orange [1x SC plug - 1x ST plug] 50/125 µ Multimode OM2
User & Safety Instructions
User & Safety Instructions 258617 Weidmüller 8896340100 Fibreglass FO Cable 10.00 m Orange [1x SC plug - 1x ST plug] 50/125 µ Multimode OM2
Description
Unlike copper cables, FO cables are much less suceptible to adverse conditions. FO doesn't interfere with electronic devices. The low attenuation of FO cables allows for long-distance transmissions.
Features
- Patch cable: SC DUPLEX IP20, ST IP20
- Pre-assembled IE-lines
- Fiber-optic patch cable
- This text is machine translated.
