Weidmüller 8924480000 VSPC 1CL 24VDC Surge arrester (plug-in) Surge protection for: Switchboards 2.5 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Overvoltage protection
- VSPC 1 CL 24VDC
Technical specifications
- Connection type: Can be plugged into VSPC BASE
- Design: Clamp, other
- Resistance: 2.20 Ω
- Input voltage, max. UI 28 V
- Maximum continuous voltage, UC (DC) 28 V.
- Storage temperature -40 °C to 80 °C.
- Nominal current IN 450 mA
- Net weight 41 g
- Optical function display: No.
- Number of poles: 1
- Protection level UP (typ.)< 800 V.
- Surge current strength C1:< 1 kA 8/20 μs
- Surge current strength C2: 5 kA 8/20 μs
- Surge current strength C3: 100 A 10/1000 μs
- Surge current strength D1 2.5 kA 10/350 μs
- Over voltage category III
- Pollution level 3
- Product type
Surge arrester (plug-in)
- Surge protection for
Switchboards
- Leakage current
2.5 kA
- Nominal voltage
24 V DC
- Operating temperature
-40 °C to +70 °C °C
IP20
- Manufacturer part #
8924480000
- Type
VSPC 1 CL 24VDC
- Factory colour
Orange
- Dim
(W x H x D) 17.8 x 90 x 69 mm
- Width
17.8 mm
- Height
90 mm
- Depth
69 mm
- Content
1 pc(s)
Other
2.4-2.4 MHz
TRUE
IP20
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 258682 Weidmüller 8924480000 VSPC 1CL 24VDC Surge arrester (plug-in) Surge protection for: Switchboards 2.5 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 258682 Weidmüller 8924480000 VSPC 1CL 24VDC Surge arrester (plug-in) Surge protection for: Switchboards 2.5 kA 1 pc(s)
Description

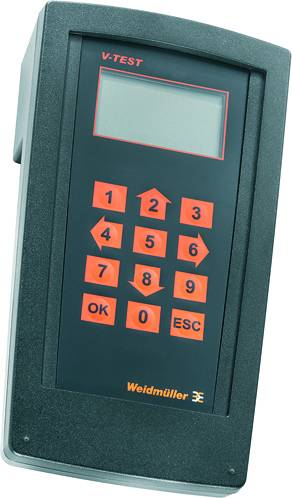

Surge protection. Measurement/control rules, without alarm function/function display. The following signals are protected for analogue signals / current loops (CL – Current Loop): Signals from current loops (analogue measurements of encoders over long distances) 4...20 mA, 0...20 mA etc. Two, three and four conductors without common reference potential. E.g. level measurement Signals from voltage sensors (analogue measurements of encoders over short distances) 0...10 V, PT 100 etc.; e.g. temperature measurement. Pluggable arrester, with uninterruptible and impedance-neutral plugging or pulling. Can be tested by testing device V-TEST. Space-saving design for 2 analogueue signals. Design with ground-free PE connection to avoid potential differences. Can be used according to the installation standard IEC 62305 (D1, C1, C2 and C3). Integrated PE-base, conducts up to 20 kA (8/20 μs) and 2.5 kA (10/350 μs) safely to PE. Colored identification of the voltage levels for quick identification in the control cabinet. Safety function by coding element for different voltage levels.
