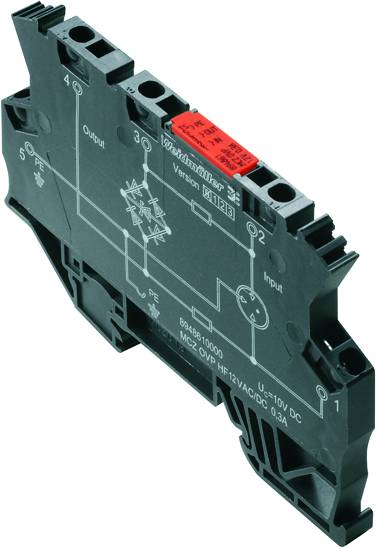

Weidmüller 8948610000 MCZ OVP HF 12V 0,3A Surge protection module Package 10 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Overvoltage protection
- Industrial packaging, pack of 10
Technical specifications
- Product type
Surge protection module
- Nominal voltage
12 V DC
12 V AC
- Manufacturer part #
8948610000
- Dim
(W x H x D) 6 x 91 x 63.5 mm
- Width
6 mm
- Height
91 mm
- Depth
63.5 mm
- RoHS-compliant
Yes
- Content
10 pc(s)
- Packaging type
Package
- Industrial packaging
Yes
- Connection
Pull spring
- Switching current (max.)
300 mA
- Max. temperature
+60 °C
- Min. temperature
-40 °C
- Weight
27.2 g
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 391941 Weidmüller 8948610000 MCZ OVP HF 12V 0,3A Surge protection module Package 10 pc(s)
User & Safety Instructions
User & Safety Instructions 391941 Weidmüller 8948610000 MCZ OVP HF 12V 0,3A Surge protection module Package 10 pc(s)
Description
Surge protection. MCZ-SERIES, measure, control, rules, 12V, MSR. Surge protection for fast analogue MSR-circles. Narrow surge protection terminal with spring-cage connection. 6 mm narrow overvoltage fine protection, fast wiring with TS contact and tension-spring connections, cross can be combined.
