Weidmüller 9200160000 Ring terminal Cross section (max.)=2.50 mm² Hole Ø=3.7 mm Partially insulated Blue 100 pc(s)
EAN:
Part number:
Item no:
Product type
Ring terminal
Thread size
M3.5
Hole Ø
3.7 mm
Insulation type
Partially insulated
Content
100 pc(s)
Datasheet (PDF)
Highlights & Details

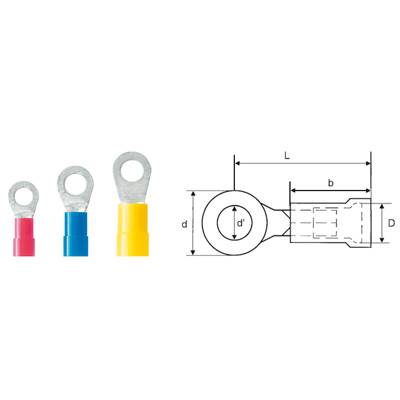

Insulated ring cable lug
- 1.50 - 2.50 mm²
Our service for you
Technical specifications
- Product type
Ring terminal
- Thread size
M3.5
- Hole Ø
3.7 mm
- Insulation type
Partially insulated
- Factory colour
Blue
- Content
100 pc(s)
- Contact material
Cathode copper, tin plated
- Manufacturer part #
9200160000
- Type
LIR 2,5M3,5 V
- max. cross section
2.50 mm²
- Min. cross section
1.50 mm²
- Weight
0.86 g
- Industrial packaging
Yes
- Insulation material
PVC
- Cross-section range
1.50 - 2.50 mm²
- RoHS-compliant
Yes
- Support sleeve
Yes
Standard version
End connector
Tinned
Blue
Copper
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 392385 Weidmüller 9200160000 Ring terminal Cross section (max.)=2.50 mm² Hole Ø=3.7 mm Partially insulated Blue 100 pc(s)
User & Safety Instructions
User & Safety Instructions 392385 Weidmüller 9200160000 Ring terminal Cross section (max.)=2.50 mm² Hole Ø=3.7 mm Partially insulated Blue 100 pc(s)
Description
Insulated ring cable shoe made of PVC, blue. Not soldered. With conical import funnel.
