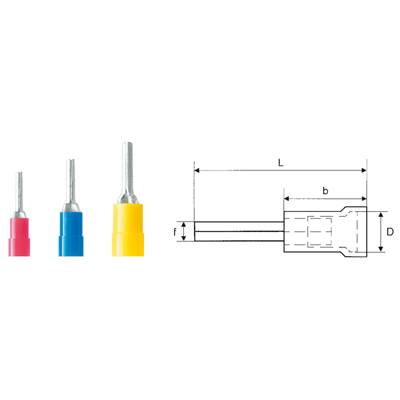

Weidmüller 9200480000 Pin terminal 4 mm² 6 mm² Partially insulated Yellow 100 pc(s)
EAN:
Part number:
Item no:
Product type
Pin terminal
Min. cross section
4 mm²
max. cross section
6 mm²
Pin length
14 mm
Pin Ø
2.8 mm
Datasheet (PDF)
Highlights & Details
Insulated pin cable lug
- Pin length: 14 mm
- Pin diameter: 2.8 mm
Technical specifications
- Product type
Pin terminal
- Min. cross section
4 mm²
- max. cross section
6 mm²
- Pin length
14 mm
- Pin Ø
2.8 mm
- Insulation type
Partially insulated
- Factory colour
Yellow
- Contact material
Cathode copper, tin plated
- Insulation material
PVC
- Width
8 mm
- Height
100 mm
- Length
28.15 mm
- Support sleeve
No
- Manufacturer part #
9200480000
- Type
LIP 6R14 V
- Content
100 pc(s)
- Dim
(L x W x H) 28.15 x 8 x 100 mm
- Industrial packaging
Yes
- RoHS-compliant
Yes
- Weight
1.7 g
- Cross-section range
4 - 6 mm²
- Crimp area (max.)
6 mm²
- Type
LIP 6R 14V
End connector
Tinned
Yellow
Copper
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 392414 Weidmüller 9200480000 Pin terminal 4 mm² 6 mm² Partially insulated Yellow 100 pc(s)
User & Safety Instructions
User & Safety Instructions 392414 Weidmüller 9200480000 Pin terminal 4 mm² 6 mm² Partially insulated Yellow 100 pc(s)
Description
Insulated pin cable lug made of PVC, yellow. Not soldered. With conical import funnel.
