Weidmüller 9200540000 Blade receptacle Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° Partially insulated Red
EAN:
Part number:
Item no:
Product type
Blade receptacle
Connector width
6.3 mm
Insulation type
Partially insulated
Content
100 pc(s)
max. cross section
1.5 mm²
Datasheet (PDF)
Highlights & Details
Insulated female spade connectors
- Red
- 6.3 mm x 0.8 mm
- 0.5 mm² - 1.5 mm²
Our service for you

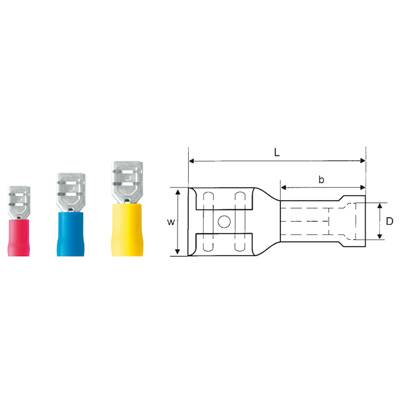

Technical specifications
- Width: 20.8 mm
- Depth: 7.7 mm
- Dimension: 6.3 mm x 0.8 mm
- Plastic collar diameter: 4 mm
- Plastic collar area: 10 mm
- Product type
Blade receptacle
- Connector width
6.3 mm
- Factory colour
Red
- Connector thickness
0.8 mm
- Insulation type
Partially insulated
- Connection angle
180°
- Content
100 pc(s)
- max. cross section
1.5 mm²
- Min. cross section
0.5 mm²
- Weight
0.95 g
- Manufacturer part #
9200540000
- Industrial packaging
Yes
- Insulation material
PVC
- Cross-section range
0.5 - 1.5 mm²
- Size
6.3 x 0.8 mm
- Type
LIF 1,5F638 R
Red
Copper
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 392420 Weidmüller 9200540000 Blade receptacle Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° Partially insulated Red
User & Safety Instructions
User & Safety Instructions 392420 Weidmüller 9200540000 Blade receptacle Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° Partially insulated Red
Description
Insulated blade terminals are made of PVC with copper-sleeve, red. Not soldered. With conical import funnel.
