Weidmüller 9200620000 Blade receptacle + branch joint Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° Partiall
EAN:
Part number:
Item no:
Product type
Blade receptacle
Connector width
6.3 mm
Insulation type
Partially insulated
Content
100 pc(s)
max. cross section
2.5 mm²
Datasheet (PDF)
Highlights & Details

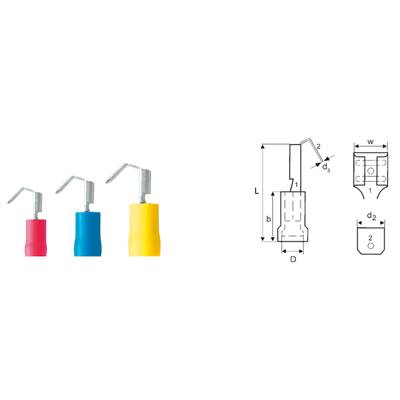

Insulated female spade connectors
- Blue
- 6.3 mm x 0.8 mm
- 1.5 mm² - 2.5 mm²
Our service for you
Technical specifications
- Width: 20.8 mm
- Depth: 7.7 mm
- Dimension: 6.3 mm x 0.8 mm
- Plastic collar diameter: 5.8 mm
- Plastic collar area: 10 mm
- Product type
Blade receptacle
- Connector width
6.3 mm
- Factory colour
Blue
- Connector thickness
0.8 mm
- Insulation type
Partially insulated
- Connection angle
180°
- Content
100 pc(s)
- max. cross section
2.5 mm²
- Min. cross section
1.5 mm²
- Weight
1.32 g
- Manufacturer part #
9200620000
- Industrial packaging
Yes
- Insulation material
PVC
- Cross-section range
1.5 - 2.5 mm²
- Size
6.3 x 0.8 mm
- Features
+ branch joint
- Type
LIF 2,5T638 R
Blue
Copper
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 392428 Weidmüller 9200620000 Blade receptacle + branch joint Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° Partiall
User & Safety Instructions
User & Safety Instructions 392428 Weidmüller 9200620000 Blade receptacle + branch joint Connector width: 6.3 mm Connector thickness: 0.8 mm 180 ° Partiall
Description
Insulated female spade connectors with junction made of PVC, blue. Not soldered. With conical import funnel.
