Weidmüller 9200710000 Bullet receptacle 1.50 mm² 2.50 mm² Pin diameter: 5 mm Insulated Blue 100 pc(s)
EAN:
Part number:
Item no:
Product type
Bullet receptacle
Min. cross section
1.50 mm²
max. cross section
2.50 mm²
Pin Ø
5 mm
Insulation type
Insulated
Datasheet (PDF)
Highlights & Details

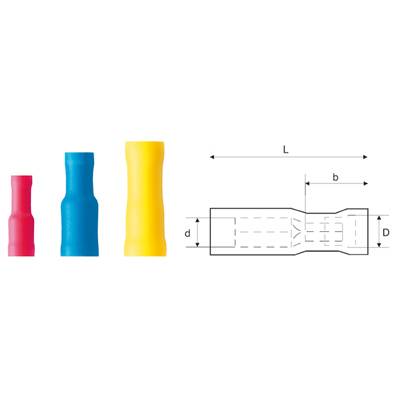

Insulated bullet receptacles
Our service for you
Technical specifications
- Product type
Bullet receptacle
- Min. cross section
1.50 mm²
- max. cross section
2.50 mm²
- AWG max.
14
- AWG (min.)
16
- Pin Ø
5 mm
- Insulation type
Insulated
- Factory colour
Blue
- Contact material
Brass tin plated
- Insulation material
PVC
- Content
100 pc(s)
- Support sleeve
No
- Manufacturer part #
9200710000
- Industrial packaging
Yes
- Cross-section range
1.50 - 2.50 mm²
- RoHS-compliant
Yes
- Temperature range
+70 °C
- Type
LID 2,5F5 RF
- Weight
1.32 g
Percussion connector
Tinned
Blue
Copper
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 392437 Weidmüller 9200710000 Bullet receptacle 1.50 mm² 2.50 mm² Pin diameter: 5 mm Insulated Blue 100 pc(s)
User & Safety Instructions
User & Safety Instructions 392437 Weidmüller 9200710000 Bullet receptacle 1.50 mm² 2.50 mm² Pin diameter: 5 mm Insulated Blue 100 pc(s)
Description
Insulated bullet receptacles. Cable lug insulated cable connector, blue. Fully Insulated bullet receptacles made of PVC. with copper sleeve. Commercially available versions. Not soldered. With conical import funnel.
