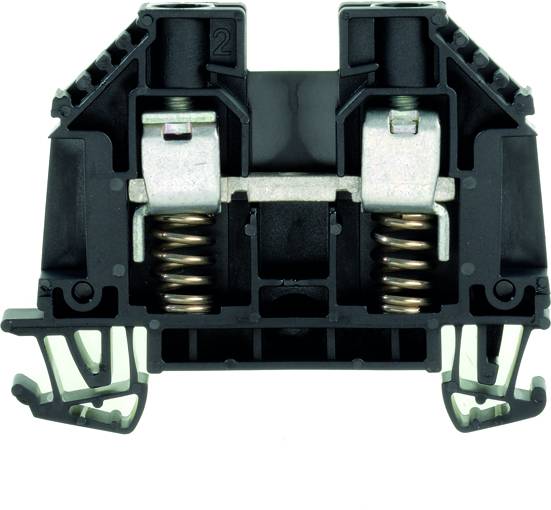

Weidmüller 9537400000 Serial terminal Screws Black 50 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Serial terminal
Connection
Screws
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
10 mm²
Datasheet (PDF)
Highlights & Details
Special terminal
- WDU 10 SL SW
Our service for you
Technical specifications
- Packaging type
Piece
- Product type
Serial terminal
- Features
spring-loaded
- Connection
Screws
- Cross section (flexible) (min.)
1 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
1.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- Factory colour
Black
- Manufacturer part #
9537400000
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
WDU 10 SL SW
- Dim
(L x W x H) 60 x 9.9 x 46.25 mm
- Width
9.9 mm
- Height
46.25 mm
- Length
60 mm
- RoHS-compliant
Yes
- Weight
21.11 g
- Connector colour
Black
- Type
WDU 10 SL SW
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 392723 Weidmüller 9537400000 Serial terminal Screws Black 50 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 392723 Weidmüller 9537400000 Serial terminal Screws Black 50 pc(s) Piece
Description
Special terminal. W-series, rated cross-section: 10 mm², screw connection. New solutions for the energy sector are at Weidmüller according to local or application-specific installation requirements. In some countries, control and protection of switching systems for transmission and distribution networks to meet the standard EA-TS 50-18. "Spring-loaded terminals are "in connection with hook blade cable lugs prescribed to provide additional security. Our "Spring-loaded "serial terminals of Series WDU SL and the disconnect terminals of the series WTL SL correspond to this standard. The technology is used in the SL versions of a coil spring is supported. In addition, this design it for two conductors in one clamp can be connected, whereby the hook blade terminals back-to-back. The aim of this construction is a good electrical contact to get if you forget to turn the clamping screw.
