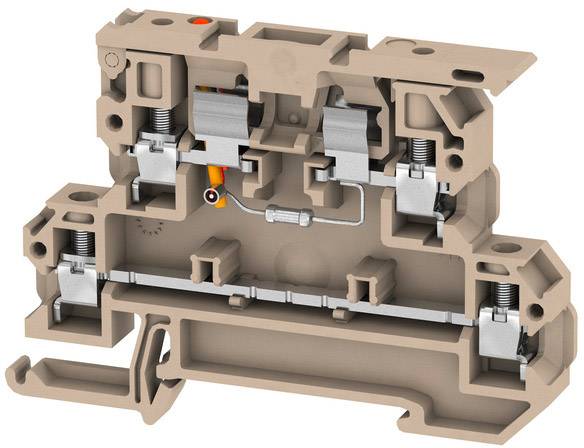

Weidmüller 9915820001 Fuse terminal 4 mm Screws Beige 50 pc(s)
EAN:
Part number:
Item no:
Product type
Fuse terminal
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
6.3 A
Datasheet (PDF)
Highlights & Details
Fuse clip
- KDKS 1EN/LLC 100-250V AC/DC
Our service for you
Technical specifications
- Product type
Fuse terminal
- Connection
Screws
- Cross section (flexible) (min.)
0.50 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.50 mm²
- Cross section (inflexible) (max.)
4 mm²
- Clamp width
4 mm
- No. of rows
2
- Number of pins
2
- Factory colour
Beige
- Nominal current
6.3 A
- Nominal current - rounded value
6.3 A
- Nominal voltage
250 V
- Manufacturer part #
9915820001
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
KDKS 1EN/LLC 100-250V AC/DC
- Height
8 mm
- Length
76.5 mm
- RoHS-compliant
Yes
- Flammability rating
UL 94 V0
- Insulation material
Plastic
- UKCA
not relevant
