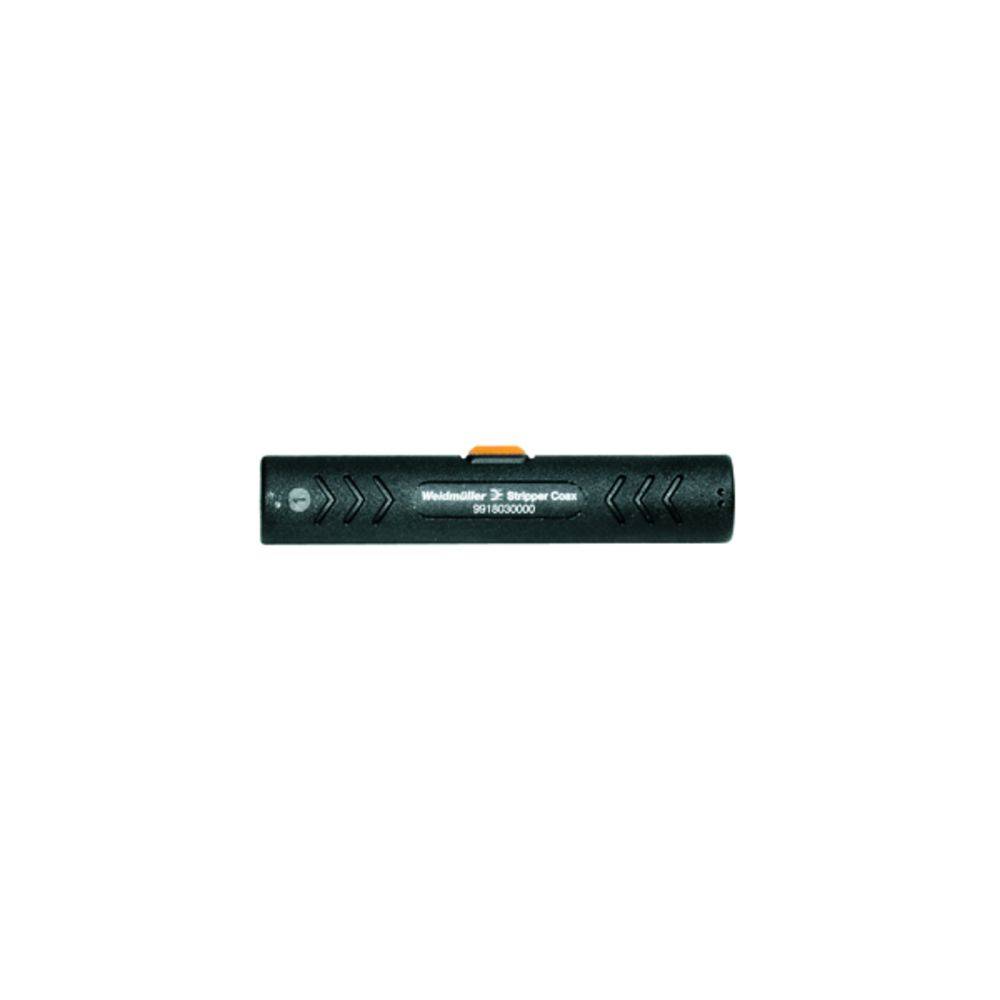

Weidmüller 9918030000 STRIPPER COAX Cable sheathing stripper Suitable for Coaxial cables, Data round cables 4.8 up to 7.
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Cable stripper
- STRIPPER COAX
Technical specifications
- Moist room cable of 8 - 13mm Ø e.g. NYM-cable, 3 x 1.5 mm² up to 5 x 2.5 mm²; no cutting depth adjustment necessary
- Product type
Cable sheathing stripper
- Suitable for
Coaxial cables
Data round cables
- Operating range (diameter)
4.8 up to 7.5 mm
- Working area diameter (min.)
4.8 mm
- Operating range (diameter) (max.)
7.5 mm
- Working area (cross section)
1.5 up to 2.5 mm²
- Working area cross section (min.)
1.5 mm²
- Operating range (cross section) (max.)
2.5 mm²
- Length
18.5 mm
- Width
97 mm
- Weight
39 g
- Height
100 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 275765 Weidmüller 9918030000 STRIPPER COAX Cable sheathing stripper Suitable for Coaxial cables, Data round cables 4.8 up to 7.
User & Safety Instructions
User & Safety Instructions 275765 Weidmüller 9918030000 STRIPPER COAX Cable sheathing stripper Suitable for Coaxial cables, Data round cables 4.8 up to 7.
Description
Stripping tool. Coaxial and data round cables. For fast and precise stripping Moist room cable of 8 to 13 mm Ø, e.g. NYM-cable, 3 x 1.5 mm² up to 5 x 2.5 mm². No cutting depth adjustment necessary Perfectly suited for working in junction boxes and distribution boxes.
Hints
This text is machine translated.
