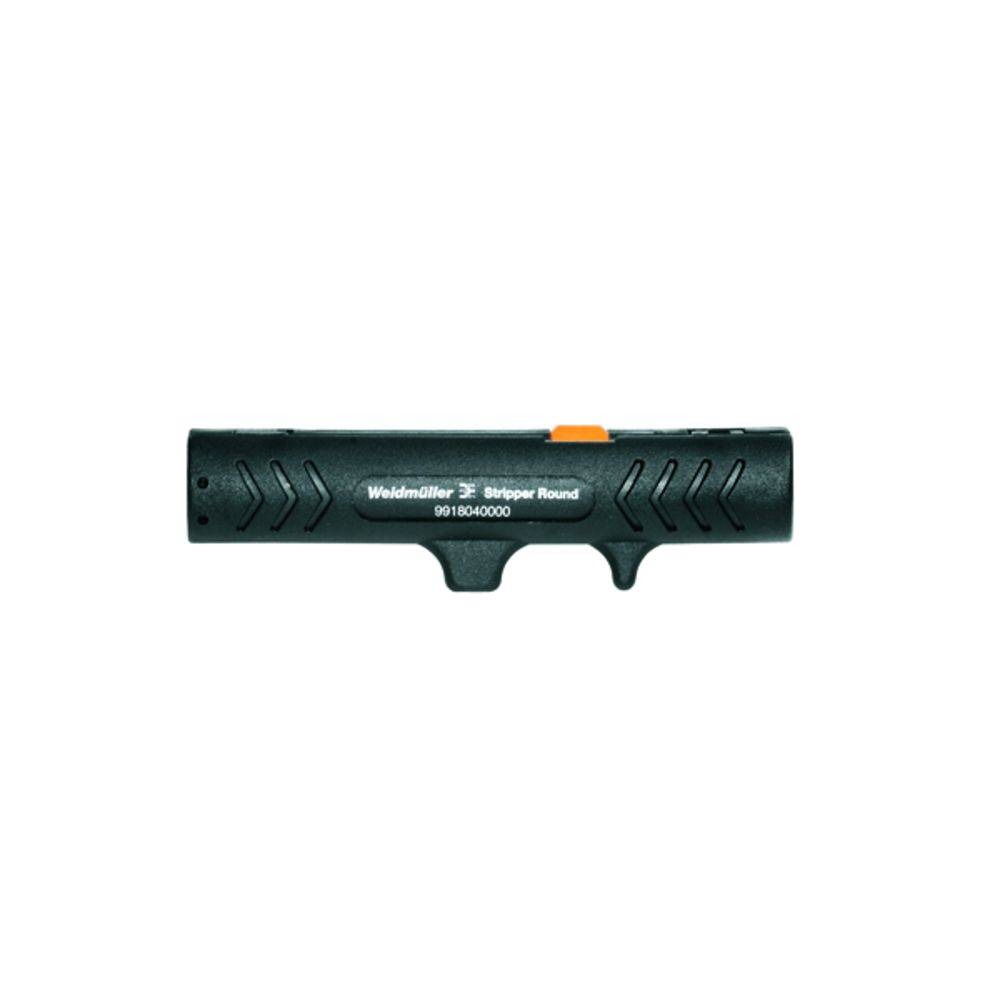

Weidmüller 9918040000 STRIPPER ROUND Cable sheathing stripper Suitable for Wet room cables 8 up to 13 mm 1.5 up to 2.5 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Cable stripper
- Stripper round
Technical specifications
- Moist room cable of 8 - 13mm Ø e.g. NYM-cable, 3 x 1.5 mm² up to 5 x 2.5 mm²; no cutting depth adjustment necessary
- Product type
Cable sheathing stripper
- Suitable for
Wet room cables
- Operating range (diameter)
8 up to 13 mm
- Working area diameter (min.)
8 mm
- Operating range (diameter) (max.)
13 mm
- Working area (cross section)
1.5 up to 2.5 mm²
- Working area cross section (min.)
1.5 mm²
- Operating range (cross section) (max.)
2.5 mm²
- Length
25 mm
- Width
125 mm
- Weight
66 g
- Height
168 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 275766 Weidmüller 9918040000 STRIPPER ROUND Cable sheathing stripper Suitable for Wet room cables 8 up to 13 mm 1.5 up to 2.5 m
User & Safety Instructions
User & Safety Instructions 275766 Weidmüller 9918040000 STRIPPER ROUND Cable sheathing stripper Suitable for Wet room cables 8 up to 13 mm 1.5 up to 2.5 m
Description
Stripping tool. fine-stranded and solid conductors with PVC insulation. For fast and precise stripping Moist room cable of 8 to 13 mm Ø, e.g. NYM-cable, 3 x 1.5 mm² up to 5 x 2.5 mm². No cutting depth adjustment necessary Perfectly suited for working in junction boxes and distribution boxes.
Hints
This text is machine translated.
