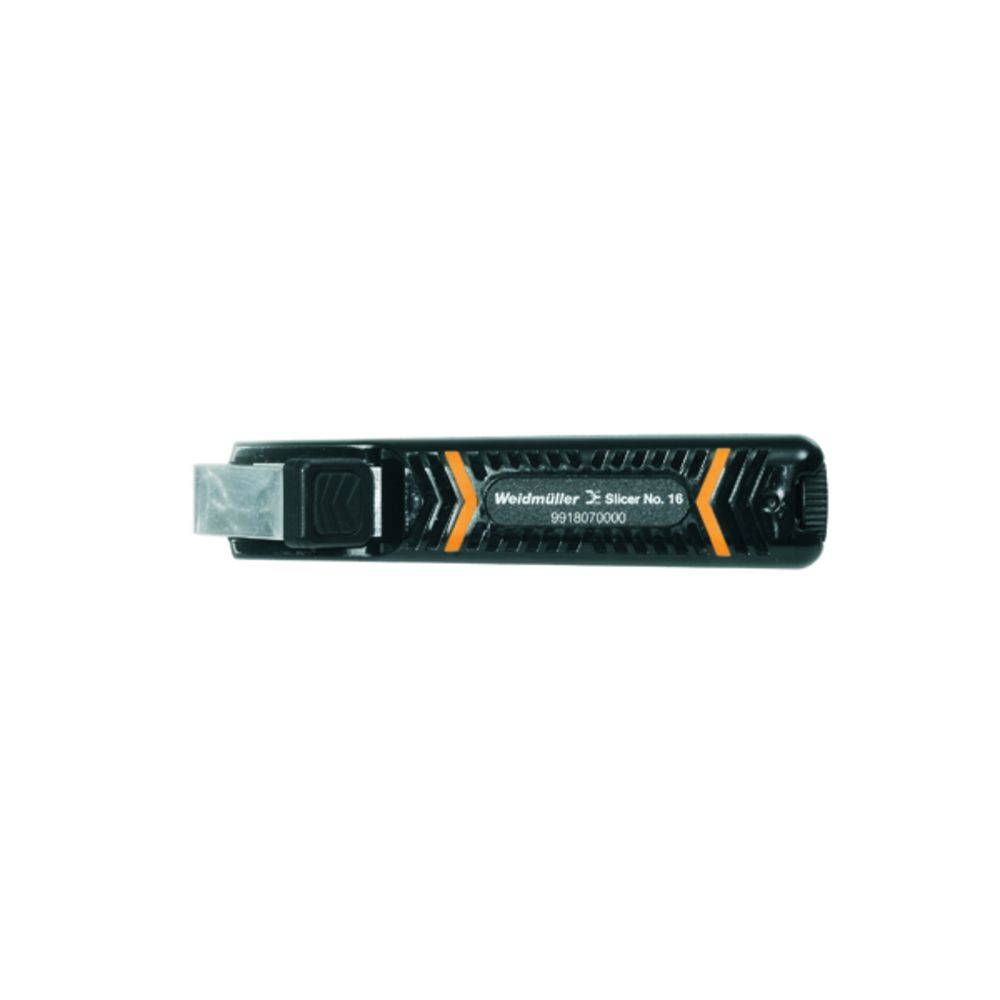

Weidmüller 9918070000 SLICER NO 16 Cable stripping knife Suitable for Round cable 4 up to 16 mm 4 up to 37 mm²
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Cable stripper
- SLICER NO 16
Technical specifications
- Adjustable cutting depth
- Product type
Cable stripping knife
- Suitable for
Round cable
- Operating range (diameter)
4 up to 16 mm
- Working area diameter (min.)
4 mm
- Operating range (diameter) (max.)
16 mm
- Working area (cross section)
4 up to 37 mm²
- Working area cross section (min.)
4 mm²
- Operating range (cross section) (max.)
37 mm²
- Length
35 mm
- Width
132 mm
- Weight
91 g
- Height
140 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 275769 Weidmüller 9918070000 SLICER NO 16 Cable stripping knife Suitable for Round cable 4 up to 16 mm 4 up to 37 mm²
User & Safety Instructions
User & Safety Instructions 275769 Weidmüller 9918070000 SLICER NO 16 Cable stripping knife Suitable for Round cable 4 up to 16 mm 4 up to 37 mm²
Description
Stripping blades. Cable knife, fine-stranded and solid conductors with PVC insulation. Simple, fast and precise stripping of all common round cable from 4 to 37 mm². Knurled screw at the end of the handle to adjust the cutting depth (by setting the cutting depth damage to the inner conductor is excluded).
Hints
This text is machine translated.
