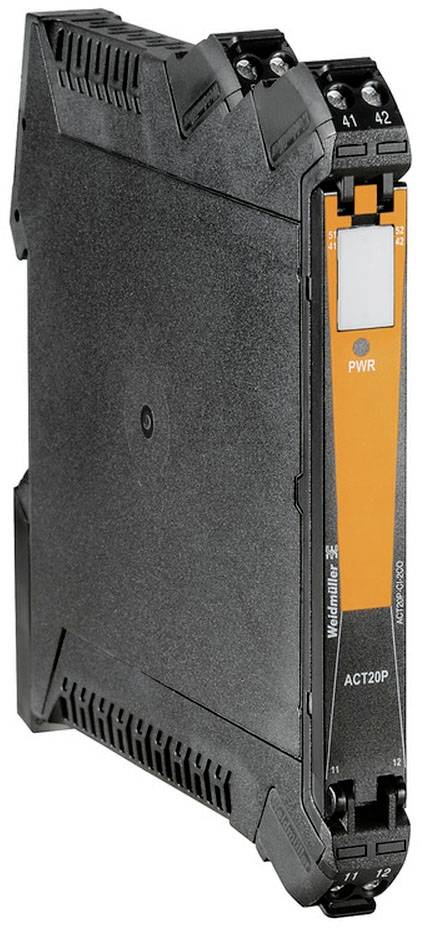

Weidmüller ACT20P-2CI-2CO-ILP 7760054124 2-channel passive isolator 1 pc(s)
EAN:
Part number:
Item no:
Product type
2-channel passive isolator
Input signal (current) (max.)
20 mA
Type
ACT20P-2CI-2CO-ILP
Dim
(L x W x H) 114 x 12.5 x 117.2 mm
Connection
Screws
Technical specifications
- Depth: 114 mm
- Number of inputs: 2
- Number of outputs: 2
- Mounting rail: TS 35
- Isolation voltage: 2 kV Inputs / outputs
- Pollution degree: 2
- Overvoltage category: III
- Wire cross-section AWG, min.: 26
- Wire cross-section AWG, max.: 12
- Tightening torque, min.: 0.4 Nm
- Tightening torque, max.: 0.6 Nm
- Clamping range, min.: 0.5 mm²
- Clamping range, max.: 2.5 mm²
- Type
ACT20P-2CI-2CO-ILP
- Product type
2-channel passive isolator
- Input signal (current) (max.)
20 mA
- Dim
(L x W x H) 114 x 12.5 x 117.2 mm
- Connection
Screws
- Output (current)
0 bis 20 mA
- Input signal (current)
0(4) bis 20 mA Stromschleife
- Content
1 pc(s)
- Configuration
not adjustable
- Width
12.5 mm
- Height
117.2 mm
- Length
114 mm
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-20 °C
- Supply voltage (num.)
24 V DC
- Operating voltage U(B)
Stromschleifengespeist über 4…20 mA Eingang
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2241005 Weidmüller ACT20P-2CI-2CO-ILP 7760054124 2-channel passive isolator 1 pc(s)
