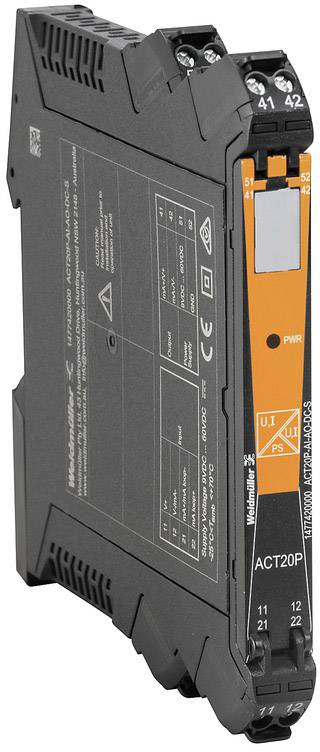

Weidmüller ACT20P-AI-AO-DC-S 1477420000 1 pc(s)
EAN:
Part number:
Item no:
Input signal (current) (max.)
20 mA
Input signal (voltage) (max.)
10 V
Type
ACT20P-AI-AO-DC-S
Dim
(L x W x H) 113.7 x 12.5 x 117.2 mm
Connection
Screws
Datasheet (PDF)
Number
Total (€ 306.72 / piece)
€ 306.72
plus VAT.
14-day return policy included
Technical specifications
- Type
ACT20P-AI-AO-DC-S
- Input signal (current) (max.)
20 mA
- Input signal (voltage) (max.)
10 V
- Dim
(L x W x H) 113.7 x 12.5 x 117.2 mm
- Connection
Screws
- Output (voltage)
0 - 11 V
- Output (current)
0 - 22 mA
- Input signal (voltage)
0 V ... 5 V. 0 V ... 10 V
- Input signal (current)
0 mA ... 20 mA. 4 mA ... 20 mA
- Content
1 pc(s)
- Width
12.5 mm
- Height
117.2 mm
- Length
113.7 mm
- RoHS-compliant
Yes
- Max. ambient temperature
+70 °C
- Min. ambient temperature
-20 °C
- Supply voltage (num.)
24 V DC
- Operating voltage U(B)
24 V DC
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- UKCA
yes
