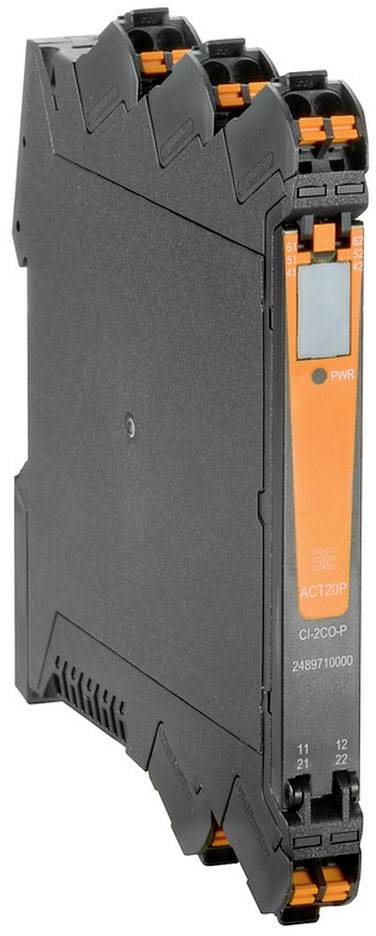

Weidmüller ACT20P-CI-2CO-P 2489710000 Signal converter 1 pc(s)
EAN:
Part number:
Item no:
Product type
Signal converter
Type
ACT20P-CI-2CO-P
Dim
(W x H) 12.5 mm x 127.1 mm
Connection
Push-in connector
Output (current)
0 bis 20 mA
Technical specifications
- Depth: 113.7 mm
- Operating temperature -20 °C...60 °C.
- Number of inputs: 1
- Number of outputs: 2
- Mounting rail TS 35
- Insulation voltage: 2 kV inputs / outputs / supply
- Pollution level: 2
- Over voltage category III
- Conductor cross-section AWG, min.: 26
- Conductor cross-section AWG, max. 14
- Type
ACT20P-CI-2CO-P
- Product type
Signal converter
- Dim
(W x H) 12.5 mm x 127.1 mm
- Connection
Push-in connector
- Output (current)
0 bis 20 mA
- Operating voltage
20 - 30 V DC
- Max. operating voltage
30 V DC
- Min. operating voltage
20 V DC
- Input signal (current)
0 bis 20 mA. 4 bis 20mA
- Content
1 pc(s)
- Configuration
not adjustable
- Width
12.5 mm
- Height
127.1 mm
- Current consumption
60 mA
- Max. ambient temperature
60 °C
- Min. ambient temperature
-20 °C
- Supply voltage (num.)
24 V
- Operating voltage U(B)
20…30 V DC
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2240720 Weidmüller ACT20P-CI-2CO-P 2489710000 Signal converter 1 pc(s)
