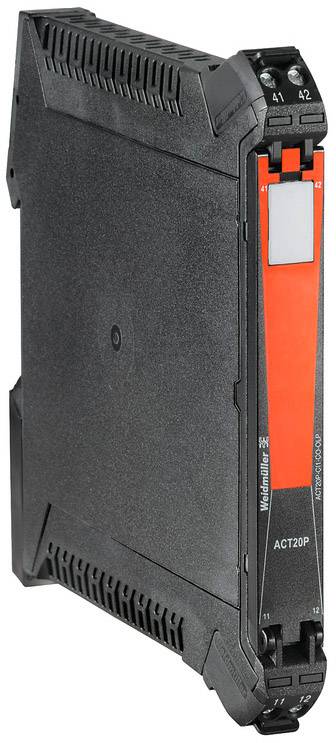

Weidmüller ACT20P-CI1-CO-OLP 7760054118 Signal converter 1 pc(s)
EAN:
Part number:
Item no:
Product type
Signal converter
Input signal (current) (max.)
20 mA
Type
ACT20P-CI1-CO-OLP
Dim
(L x W x H) 114 x 12.5 x 117.2 mm
Connection
Screws
Datasheet (PDF)
Technical specifications
- Weight: 126 g
- Operating temperature: 20 °C - +60 °C
- Number of inputs: 1
- Sensor: Power source
- Number of outputs: 1
- Galvanic isolation: 2-way isolator
- Accuracy < : 0.1% of the final value
- Mounting rail TS 35
- Jump response time < : 1 ms
- Surge voltage 4 kV (1.2/50 µs)
- Conductor cross-section AWG, min. AWG 26
- Conductor cross-section AWG, max. AWG 12
- Tightening torque, min.: 0.4 Nm
- Tightening torque, max. 0.6 Nm
- Type
ACT20P-CI1-CO-OLP
- Product type
Signal converter
- Input signal (current) (max.)
20 mA
- Dim
(L x W x H) 114 x 12.5 x 117.2 mm
- Connection
Screws
- Output (current)
4 mA-20 mA
- Operating voltage
300 V (max)
- Max. operating voltage
300 V
- Load
600 Ω
- Input signal (current)
0 mA-20 mA
- Content
1 pc(s)
- Width
12.5 mm
- Height
117.2 mm
- Length
114 mm
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-20 °C
- Supply voltage (num.)
30 V DC
- Cross section (inflexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- UKCA
yes
