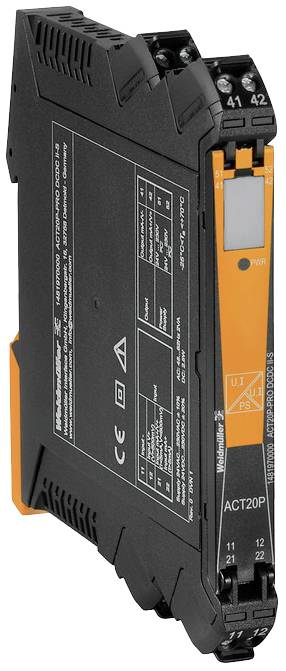

Weidmüller ACT20P-PRO DCDC II-24-S 2816690000 Isolation amplifier 1 pc(s)
EAN:
Part number:
Item no:
Product type
Isolation amplifier
Input signal (voltage) (max.)
300 V
Type
ACT20P-PRO DCDC II-24-S
Dim
(L x W x H) 113.7 x 12.5 x 119.2 mm
Connection
Screws
Technical specifications
- Type
ACT20P-PRO DCDC II-24-S
- Product type
Isolation amplifier
- Input signal (voltage) (max.)
300 V
- Dim
(L x W x H) 113.7 x 12.5 x 119.2 mm
- Connection
Screws
- Output (voltage)
0 - 10 V
- Output (current)
0 - 20 mA
- Operating voltage
600 V (max)
- Max. operating voltage
600 V
- Input signal (current)
0.1 mA - 100 mA
- Input resistance
100 Ω
- Content
1 pc(s)
- Configuration
DIP switch
- Width
12.5 mm
- Height
119.2 mm
- Length
113.7 mm
- RoHS-compliant
Yes
- Max. ambient temperature
+70 °C
- Min. ambient temperature
-25 °C
- Supply voltage (num.)
24 V DC
- Cross section (inflexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2537652 Weidmüller ACT20P-PRO DCDC II-24-S 2816690000 Isolation amplifier 1 pc(s)
