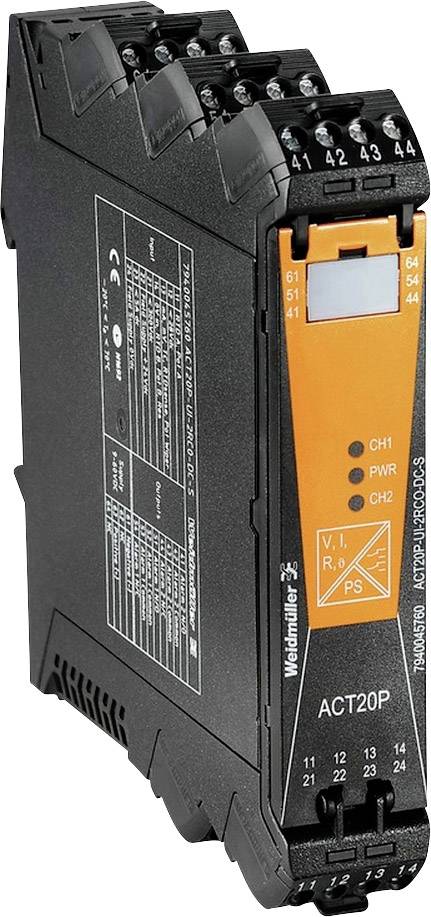

Weidmüller ACT20P-UI-2RCO-AC-P 2495690000 Transducer 1 pc(s)
EAN:
Part number:
Item no:
Product type
Transducer
Input signal (current) (max.)
20 mA
Input signal (voltage) (max.)
30 V
Type
ACT20P-UI-2RCO-AC-P
Dim
(L x W x H) 113.6 x 22.5 x 127.1 mm
Technical specifications
- Depth: 113.6 mm
- Number of inputs: 1
- mounting rail: TS 35
- conductor cross-section AWG, min.: 26
- conductor cross-section AWG, max.: 14
- Number of digital outputs: 2
- Type
ACT20P-UI-2RCO-AC-P
- Product type
Transducer
- Input signal (current) (max.)
20 mA
- Input signal (voltage) (max.)
30 V
- Dim
(L x W x H) 113.6 x 22.5 x 127.1 mm
- Connection
Push-in connector
- Operating voltage
90 - 264 V AC
- Max. operating voltage
264 V AC
- Min. operating voltage
90 V AC
- Input signal (voltage)
konfigurierbar
- Input signal (current)
konfigurierbar. ± 25 mA DC. ±5 A DC
- Content
1 pc(s)
- Configuration
Software
- Width
22.5 mm
- Height
127.1 mm
- Length
113.6 mm
- Supply voltage (num.)
24 V DC
- Operating voltage U(B)
90…264 V AC
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- UKCA
yes
