Buy Weidmüller ACT20P-UI-AO-DO-LP-S 1453210000 Signal converter 1 pc(s)

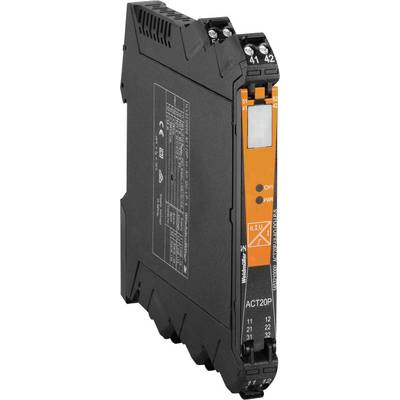

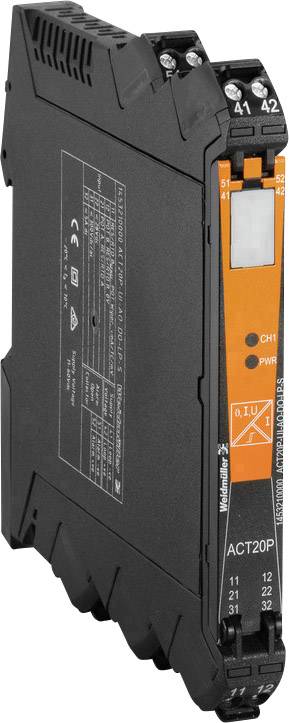

Image similar

Product type

Signal converter

Input signal (current) (max.)

5000 mA

Input signal (voltage) (max.)

250 V

Type

ACT20P-UI-AO-DO-LP-S

Dim

(L x W x H) 113.6 x 12.5 x 119.2 mm

Datasheet (PDF)

Dispatches on Tue, 6 Oct

5 Piece(s)

Sales and shipping:

Piece(s)

Total (€ 352.10 / piece)

€ 352.10

plus VAT.

Only 5 Piece(s) available

14-day return policy included

Technical specifications

Net weight 157 g
Operating temperature: 20 °C - +70 °C
Storage temperature: -20 °C to +70 °C.
Number of inputs: 1
Potentiometer 1.2 kΩ-500 kΩ
Sensor: Pt100 (2-/3-wire), PT1000 (2-/3-wire), PT200, N120, Cu 10, THERMOCOUPLES: B, E, J, K, L, N, R, S, T, U
Galvanic isolation: 2-way isolator, between input/output
Accuracy < : 0.1% of the measurement range
Mounting rail TS 35
Input type: Universal signal conditioners/amplifiers, thermocouples, RTD
Jump response time: 450 ms
Surge voltage 4 kV (1.2/50 µs)
Sensor supply: 0.1 mA / 0.05 mA (measuring range dependant) with RTD cable
Conductor cross-section AWG, min. AWG 26
Conductor cross-section AWG, max. AWG 12
Tightening torque, min.: 0.4 Nm
Tightening torque, max. 0.6 Nm
Nominal switching voltage 30 V/DC
