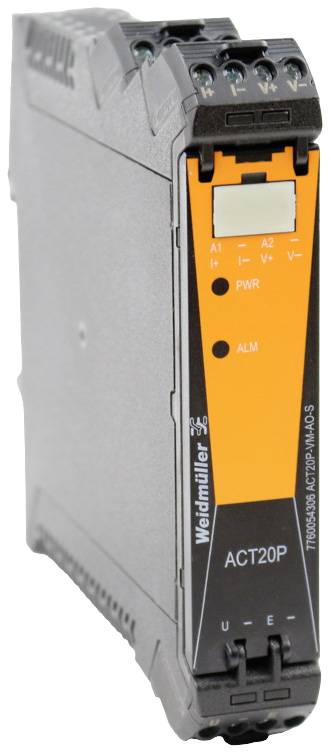

Weidmüller ACT20P-VM-AO-P 7760054360 Isolation amplifier 1 pc(s)
EAN:
Part number:
Item no:
Product type
Isolation amplifier
Input signal (voltage) (max.)
660
Type
ACT20P-VM-AO-P
Dim
(L x W x H) 114.3 x 22.5 x 119.2 mm
Connection
Spring-loaded connector
Technical specifications
- Type
ACT20P-VM-AO-P
- Product type
Isolation amplifier
- Input signal (voltage) (max.)
660
- Dim
(L x W x H) 114.3 x 22.5 x 119.2 mm
- Connection
Spring-loaded connector
- Output (voltage)
0 - 10 V
- Output (current)
0 - 20 mA, 4 - 20 mA
- Operating voltage
600 V (max)
- Max. operating voltage
600 V
- Input signal (voltage)
0 - 660 V/DC; 0 - 440 V/AC
- Content
1 pc(s)
- Configuration
Software
- Width
22.5 mm
- Height
119.2 mm
- Length
114.3 mm
- RoHS-compliant
Yes
- Max. ambient temperature
+65 °C
- Min. ambient temperature
-25 °C
- Supply voltage (num.)
240 V
- Operating voltage U(B)
24 V
- Cross section (inflexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- UKCA
yes
