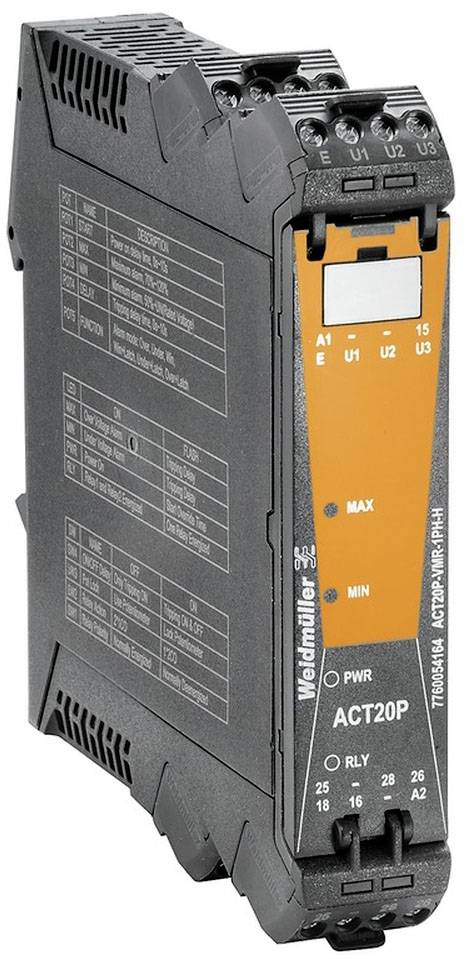

Weidmüller ACT20P-VMR-1PH-H 7760054164 Transducer 1 pc(s)
EAN:
Part number:
Item no:
Product type
Transducer
Type
ACT20P-VMR-1PH-H
Dim
(W x H) 22.5 mm x 117 mm
Connection
Screws
Operating voltage
24 - 240 V DC/AC
Technical specifications
- Depth: 114.3 mm
- Operating temperature: -25 °C...60 °C
- Number of inputs: 1
- mounting rail: TS 35
- Isolation voltage: 2.5 kV (input / output), 2 kV input / output / supply
- Pollution degree: 2
- Overvoltage category: III
- Power consumption: ≤ 100 mA at 24 VDC, ≤ 120mA at 24V AC
- conductor cross-section AWG, min.: 26
- conductor cross-section AWG, max.: 12
- Tightening torque, min.: 0.4 Nm
- Tightening torque, max.: 0.6 Nm
- Clamping range, min.: 0.5 mm²
- Clamping range, max.: 2.5 mm²
- Number of digital outputs: 2
- Type
ACT20P-VMR-1PH-H
- Product type
Transducer
- Dim
(W x H) 22.5 mm x 117 mm
- Connection
Screws
- Operating voltage
24 - 240 V DC/AC
- Max. operating voltage
240 V DC/AC
- Min. operating voltage
24 V DC/AC
- Input signal (voltage)
0 V ... 30 V
- Content
1 pc(s)
- Configuration
DIP switch
Potentiometer
- Width
22.5 mm
- Height
117 mm
- Max. ambient temperature
60 °C
- Min. ambient temperature
-25 °C
- Supply voltage (num.)
24 V DC
- Operating voltage U(B)
24…240 VUC ±10%
- UKCA
yes
