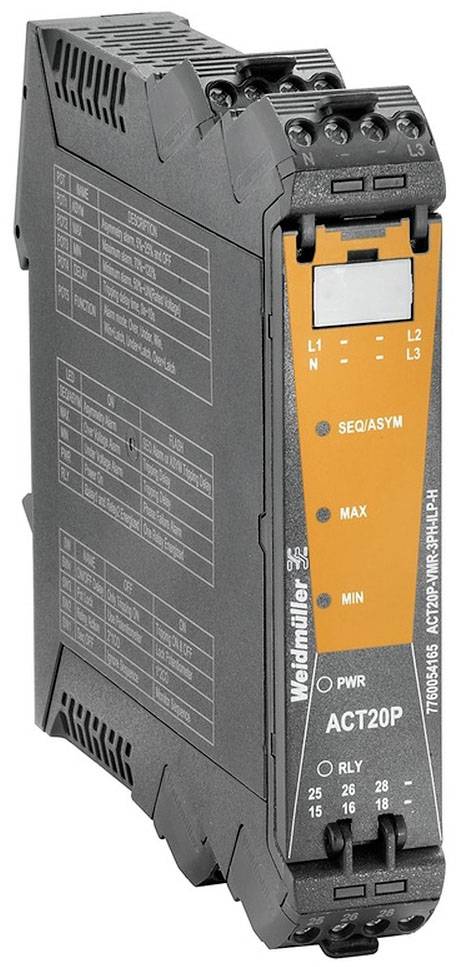

Weidmüller ACT20P-VMR-3PH-ILP-H 7760054165 Transducer 1 pc(s)
EAN:
Part number:
Item no:
Product type
Transducer
Type
ACT20P-VMR-3PH-ILP-H
Dim
(L x W x H) 114.3 x 22.5 x 117 mm
Connection
Screws
Input signal (voltage)
180 bis 500 VAC
Technical specifications
- Depth: 114.3 mm
- Operating temperature: -25 °C...60 °C
- Number of inputs: 1
- mounting rail: TS 35
- Insulation voltage: 2.5 kV (input / output)
- Pollution degree: 2
- Overvoltage category: III
- Power consumption: ≤ 3VA
- conductor cross-section AWG, min.: 26
- conductor cross-section AWG, max.: 12
- tightening torque, min.: 0.4 Nm
- Tightening torque, max.: 0.6 Nm
- range, min.: 0.5 mm²
- Clamp range, max.: Max.: 2.5 mm²
- Number of digital outputs: 2
- Type
ACT20P-VMR-3PH-ILP-H
- Product type
Transducer
- Dim
(L x W x H) 114.3 x 22.5 x 117 mm
- Connection
Screws
- Input signal (voltage)
180 bis 500 VAC
- Content
1 pc(s)
- Configuration
DIP switch
Potentiometer
- Width
22.5 mm
- Height
117 mm
- Length
114.3 mm
- Max. ambient temperature
60 °C
- Min. ambient temperature
-25 °C
- Operating voltage U(B)
gespeist von Spannungsmesseingängen
- UKCA
yes
