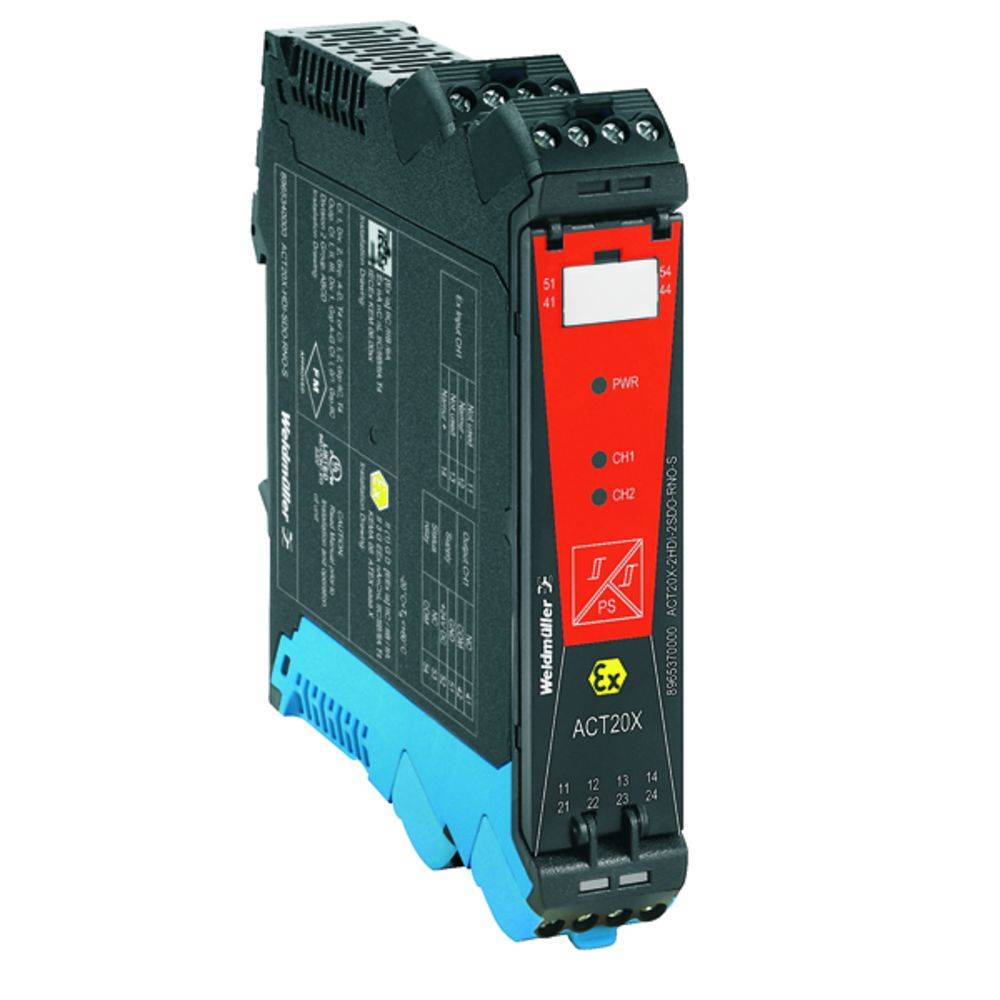

Weidmüller ACT20X-HDI-SDO-S 8965360000 Signal converter 1 pc(s)
EAN:
Part number:
Item no:
Product type
Signal converter
Type
ACT20X-HDI-SDO-S
Dim
(L x W x H) 113.6 x 22.5 x 119.2 mm
Connection
Screws
Operating voltage
300 V (max)
Datasheet (PDF)
Highlights & Details
Ex-Signalwandler/disconnector
- ACT20X-HDI-SDO-S
Technical specifications
- Net weight 170 g
- Operating temperature: 20 °C - +60 °C
- Storage temperature: -20 °C to +85 °C.
- Protection class: IP20
- Sensor: NAMUR sensor according to EN60947, switch with or without RS, RP
- Continuous current 80 mA
- Rated power < 62.5 VA/32 W (safe range), < 16 VA/32 W (zone 2)
- Input frequency: 0 kHz - 5 kHz
- Input EX Type: Intrinsically safe circuit
- Power consumption 1.1 W
- Sensor supply: 8 V/DC / 8 mA
- Conductor cross-section AWG, min. AWG 26
- Conductor cross-section AWG, max. AWG 12
- Tightening torque, min.: 0.4 Nm
- Tightening torque, max. 0.6 Nm
- Nominal switching voltage 30 V/DC
- Type
ACT20X-HDI-SDO-S
- Product type
Signal converter
- Dim
(L x W x H) 113.6 x 22.5 x 119.2 mm
- Connection
Screws
- Operating voltage
300 V (max)
- Max. operating voltage
300 V
- Input resistance
1 kΩ
- Content
1 pc(s)
- Configuration
Software
- Width
22.5 mm
- Height
119.2 mm
- Length
113.6 mm
- RoHS-compliant
Yes
- Supply voltage (num.)
31.2 V DC
- Cross section (inflexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.25 mm²
- Depth
113.6 mm
- Type
ACT20X-HDI-SDO-S
- Weight
170 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 258847 Weidmüller ACT20X-HDI-SDO-S 8965360000 Signal converter 1 pc(s)
User & Safety Instructions
User & Safety Instructions 258847 Weidmüller ACT20X-HDI-SDO-S 8965360000 Signal converter 1 pc(s)
Description
Ex-Signalwandler/disconnector. ACT20X, 1-channel version. The isolating switch amplifier ACT20X-HDI-SDO-S/2 HDI-2 SDO-S are specially designed from NAMUR sensor or digital switching signals from the hazardous area zone 0. Via minus switching transistor outputs (NPN), the signals applications in the safe area. Integrated alarm contacts, in the event of a fault status messages that enable a fast error identification and thus increase system availability. The rail mountable isolating switch amplifier are optionally available in one or two-channel design. With 11 mm width per channel, these devices have very little space in the control cabinet.
